HOYITE máquina grafar mangueras

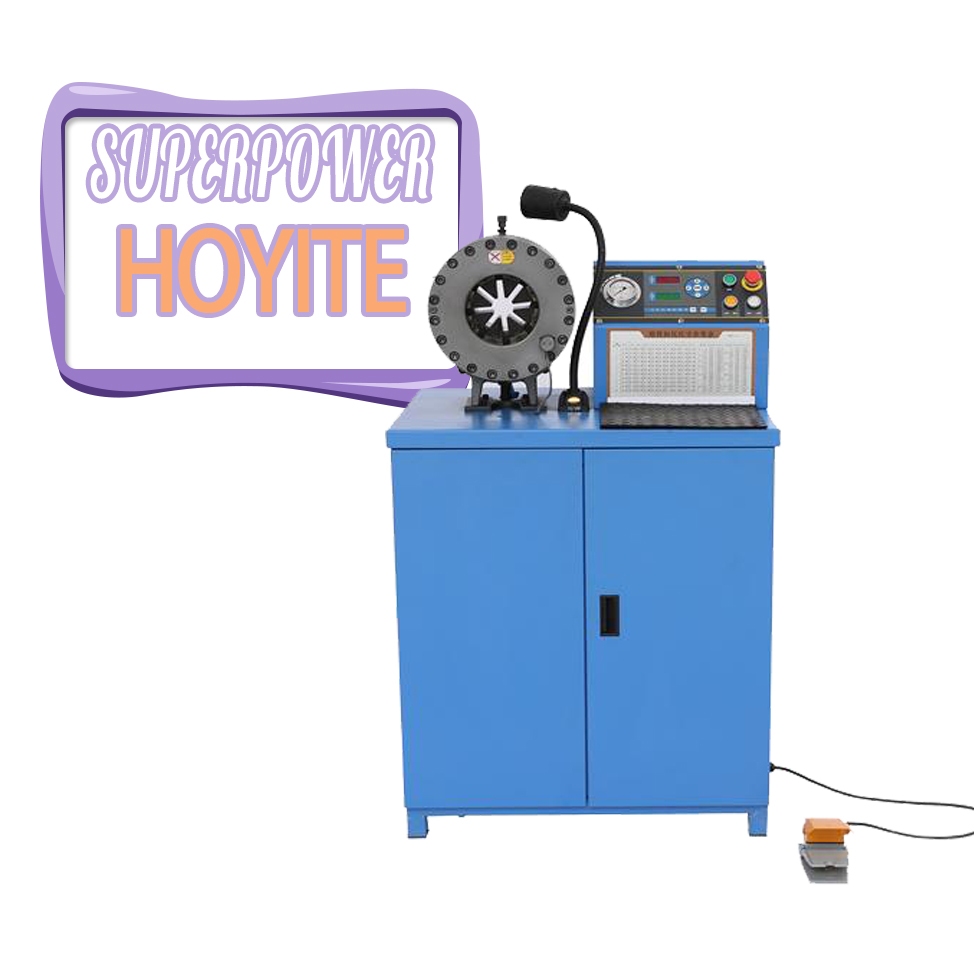

The UltimateGrip Max is the go-to solution for heavy-duty crimping of six-layer hoses. Engineered for strength and durability, this machine delivers exceptional gripping force and precise crimps. With its high-capacity design, it tackles even the most challenging applications with ease, ensuring superior performance and longevity
HYT-C91 CNC type |
|
| Main Specification | |
| Crimper range | 1/4"-2" 4SP (6-51mm) |
| Voltage&motor | 380V(4KW)/220V(3KW) |
| Opening without dies | 122mm |
| Hydraulic oil box | 45L(USE 36L) |
| Dies of quantity | 10 sets |
| Systematic pressure | 30MPa |
| Largest pressure | 640T |
| Quick change dies | Options |
| Optional accessories | Movable caster/Metal handle |
| Volume(LxWxH) | 80x63x130cm |
| Net weight | 310KG(683lb) |
| Efficiency(reference) | 400pcs/Hour |
Engarzar Cortar Rebajar
Manual 12 V Portátil
Taller Producción Servicio pesado
Alimentación lateral Tuerca y cable
Opciones Juegos de troqueles
