HOYITE máquina grafar mangueras
The HydroSwage Lite is the perfect companion for on-the-go hydraulic hose assembly. This portable hydraulic hose swage tool and compact crimping machine combo offer convenience without compromising performance. With its lightweight design and user-friendly operation, effortlessly swage fittings onto hydraulic hoses and achieve reliable crimps wherever you are. The HydroSwage Lite is the go-to solution for mobile technicians and service professionals in need of a compact and versatile tool.

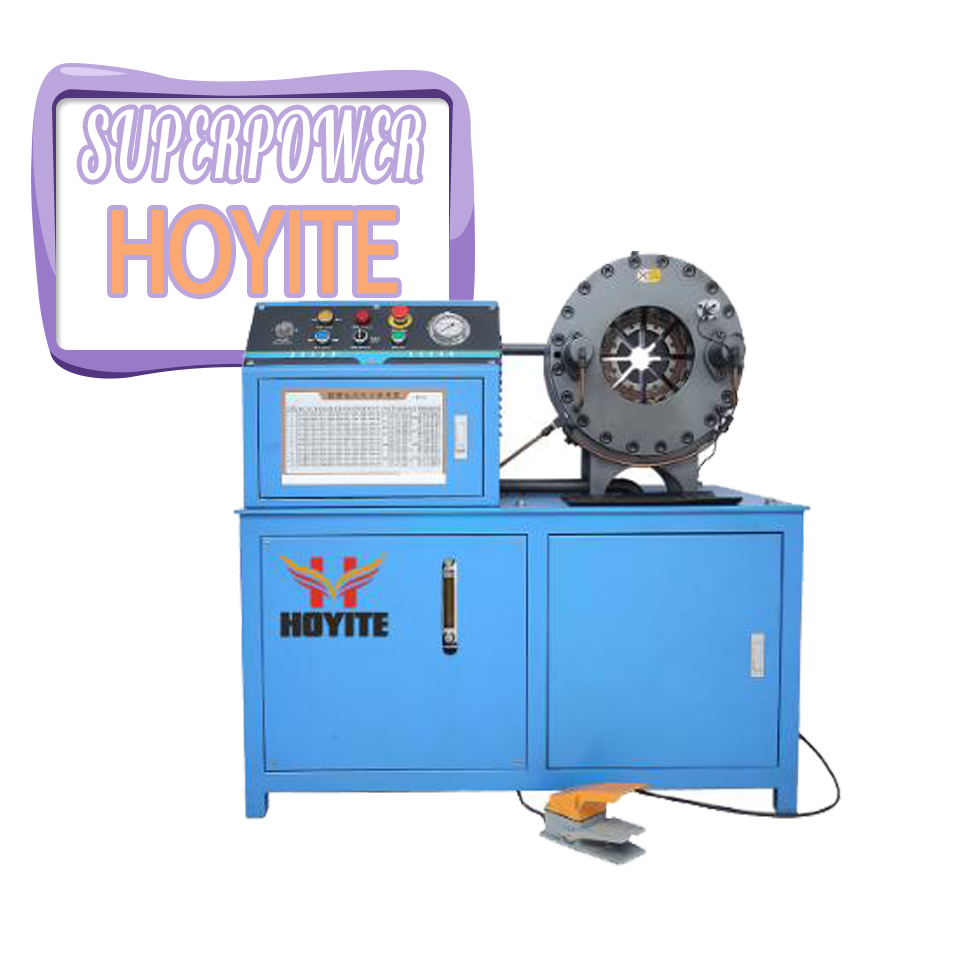

HYT-D91, CNC type |
|
| Main Specification | |
| Crimper range | 1/4" -4" 6S (6-102mm) |
| Voltage&motor | 380V/5.5kw |
| Opening without dies | 220mm |
| Hydraulic oil box | 80L(USE 70L) |
| Dies of quantity | 18 sets |
| Systematic pressure | 30MPa |
| Largest pressure | 1500T |
| Quick change dies | No |
| Optional accessories | No |
| Volume(LxWxH) | 110x73x112cm |
| Net weight | 900KG(1984lb) |
| Efficiency(reference) | 300pcs/Hour |
Engarzar Cortar Rebajar
Manual 12 V Portátil
Taller Producción Servicio pesado
Alimentación lateral Tuerca y cable
Opciones Juegos de troqueles
