2" 4S Manual Type Inside and Outside Skiving Machine
2" 4S Manual Type Inside and Outside Skiving Machine 2" 4S Manual Type Inside and Outside Skiving Machine

2" 4S Manual Type Inside and Outside Skiving Machine

Product ID : HYT-K51
Product Tags : Skiving Machine
Product Attributes :

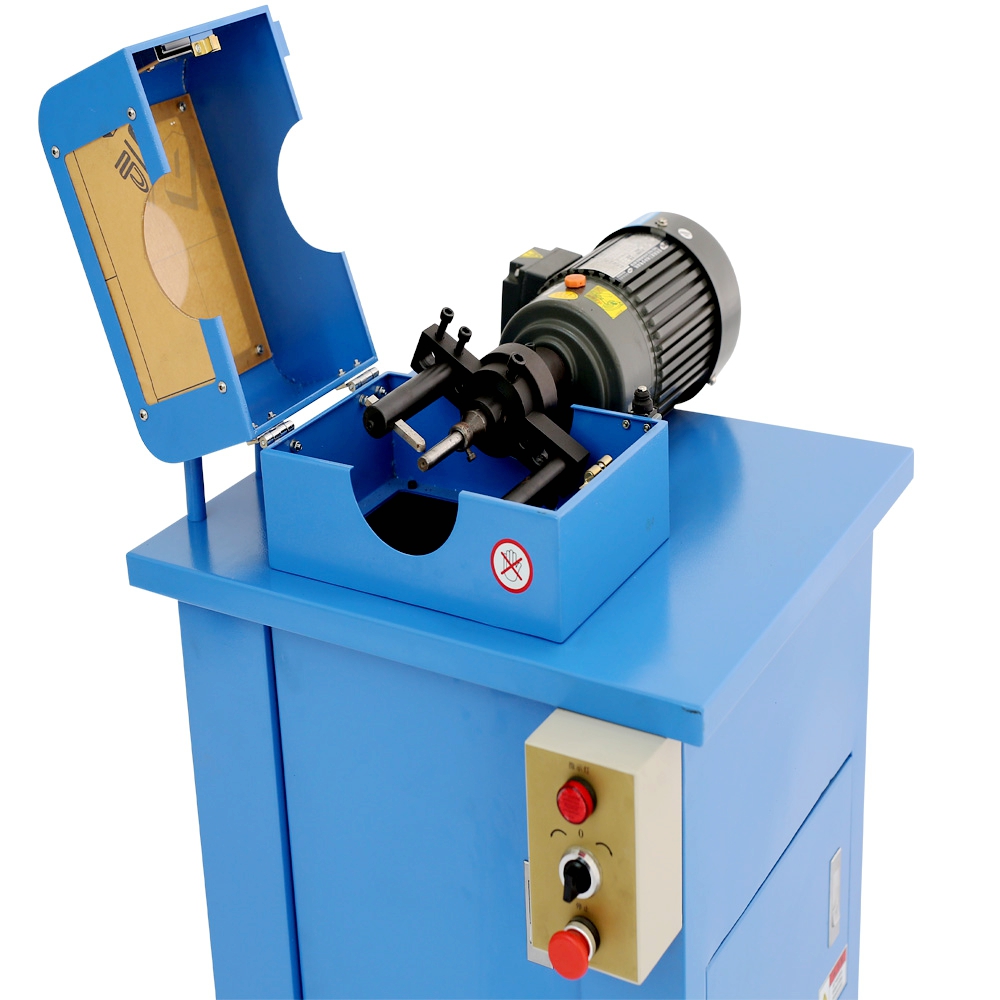

The head of this rubber stripping machine is equipped with 10 mandrels of different sizes, which can meet the needs of skiving the inside & outer rubber layer of the 1/4~2 inch hose. The black knob  controls the switch of the machine, which is easy to operate.

Product Description

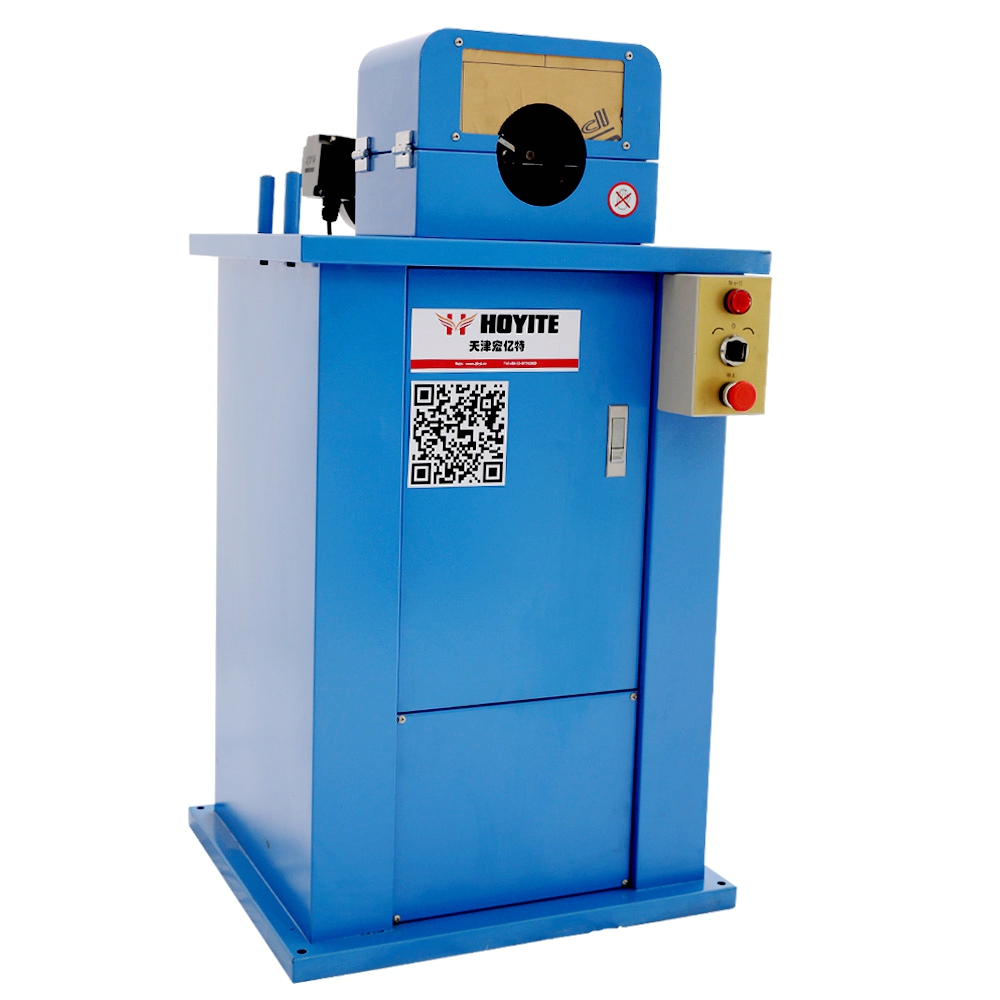

HYT-K51 2" 4S Manual Type Inside and Outside Skiving Machine

Construction:

1. High-quality blades can quickly skive off the adhesive layer without hurting the steel wire.

2. With 10 sets of high-quality mandrels, it can easily skive off the inside and outer rubber layer of the 1/4~2 inch hose.

3. With trash can, it is neat and time-saving.

4.90 kg weight, light weight and easy to move.

5. Provide 380V and 220V two voltages for selection.

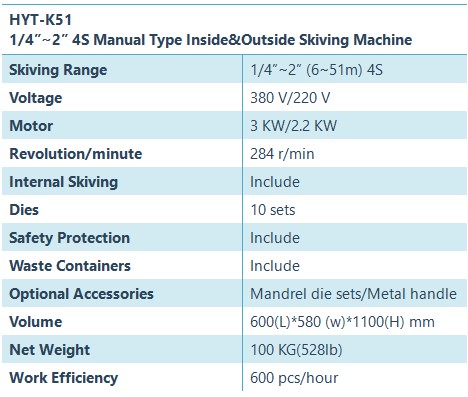

Technical Parameter:

HYT-K51 2" 4S Manual Type Inside and Outside Skiving Machine
Cutting Range
1/4" - 2" 4SP (6-51mm)
Voltage
380V/220V
Motor
3KW/2.2KW
Revolutions/Minute
284r/min
Internal Skiving
Include
Dies
10 Set
Safety Protection
Include
Waste Containers
Include
Dust collector
Include
Volume
60*58*110cm
Net weight
100KG
Work Efficiency
600 pcs/hour

Information:

Payment:Support T/T(Bank transfer),Weston Union,Paypal,Cred card,Online Pay and other payment method.

Packing:

First,put the machine on a fumigation-free wooden pallet and wrap it with moisture-proof plastic film.

Then, put it into a wooden box and fix the wooden box with a steel belt.

Finally,  use a forklift to transport the wooden box onto a truck.

Delivery Time:3~7 Days.



Port of dispatch:Tianjin,China.
