TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.

Home Products Multi-Functional Machine HYT-A53 Hose Crimping Machine Skiving Machine 2-Function

Products

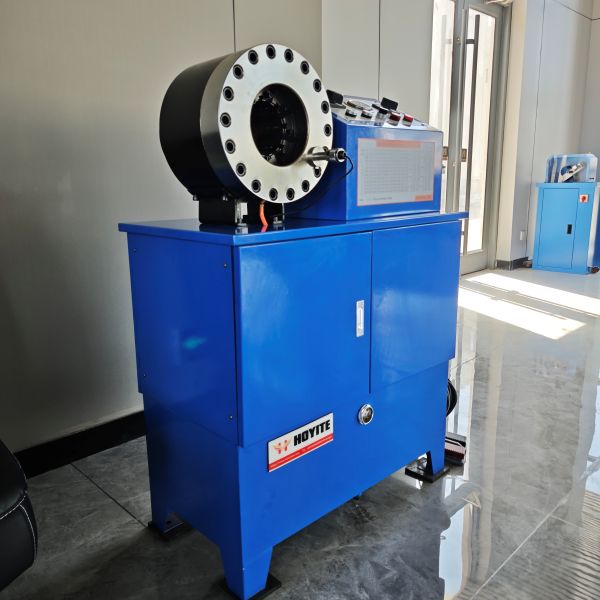

HYT-A53 Hose Crimping Machine Skiving Machine 2-Function
HYT-A53 Hose Crimping Machine Skiving Machine 2-Function HYT-A53 Hose Crimping Machine Skiving Machine 2-Function HYT-A53 Hose Crimping Machine Skiving Machine 2-Function

HYT-A53 Hose Crimping Machine Skiving Machine 2-Function

Product ID : HYT-A53
Product Tags :
Product Attributes :

This new design machine show great useful because it can do crimp and skive works together. It carefully made to work with 1/4 to 2-inch 4S pipes very precise. Not only it follow strict environment-friendly rule, but it also very strong. This make sure the machine work good for long time in many different use.

Product Description

HYT-A53 Hose Crimping Machine Skiving Machine 2-Function

Product Description

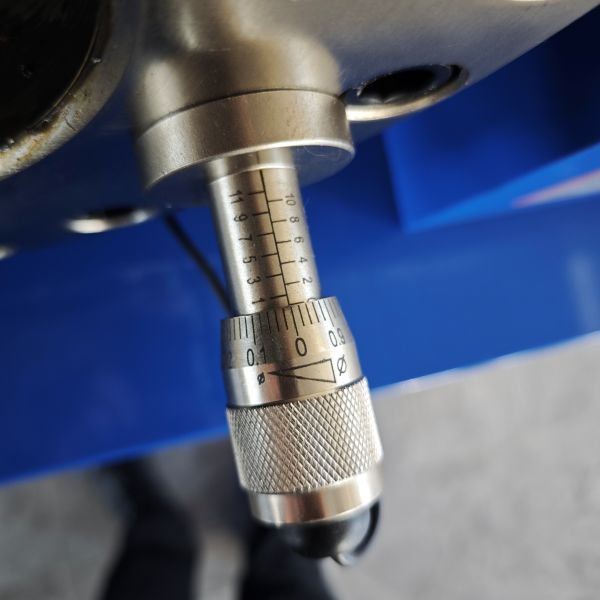

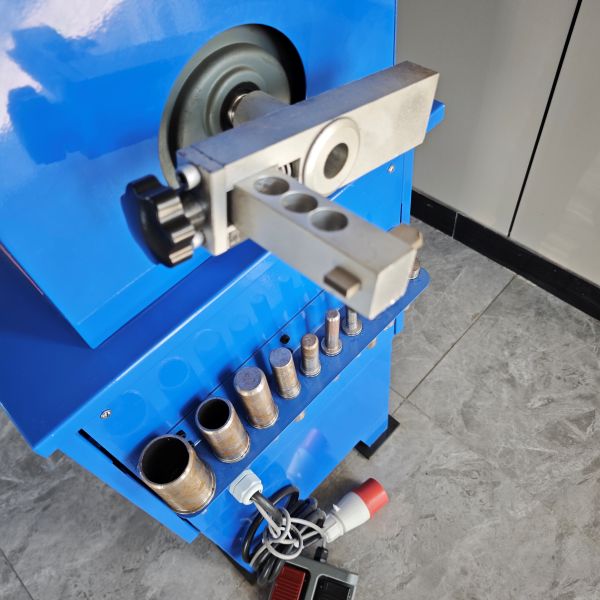

1. High-Quality Rubber Blade – It got high-quality rubber stripping blade and adjustable knob, make sure it peel outer rubber layer perfect without hurt the tube.

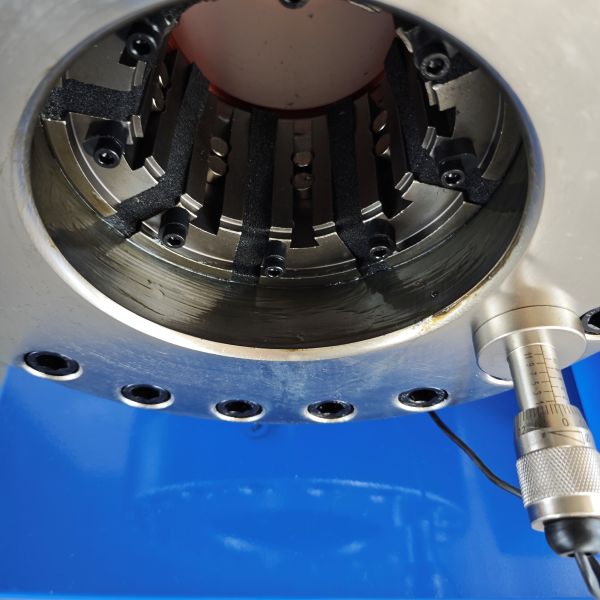

2. Strong Forged Steel Head – The head made from high-quality forged steel and has big opening, this mean it last long and work very efficient.

3. Compact & Lightweight – This machine small and light, so you can move it easy to different places no problem.

4. Two Voltage Choices – It can use 380V or 220V power, fit different electric supply needs, make it more useful in many work places.

Technical Parameter

HYT-A53 1/4"~2" Hose Crimping Machine Skiving Machine 2-Function
Crimp Range
1/4"~2"(6~51mm) 4s
Skiving Range
1/4"~2"(6~51mm) 4s
Voltage
380 V/220V
Motor
4 KW/3KW
Max Opening
114 mm
Hydraulic Oil Box
40L(USE 32L)
System Pressure
31.5 MPa
Crimping Force
500T
Mold
10 sets
Quick Mold change
Option
Work Efficiency
200 pcs/hour

Package & Warranty

Package

    • Prepare fumigation-free wooden pallets compliant with export standards for packaging, ensuring convenient inspection.
    • Secure the machine onto the wooden pallet to prevent any slipping and shaking.
    • Wrap the machine with a moisture-proof film to safeguard against dampness and abrasion that might occur during transportation.

Warranty

    • We offer a lifetime warranty for our machines.

Payment & Shipping

  • Payment: L/C, D/P, T/T, Western Union, MoneyGram
  • Shipping: The main method of transport is sea or air. FEDEX/DHL/UPS/TNT for samples
