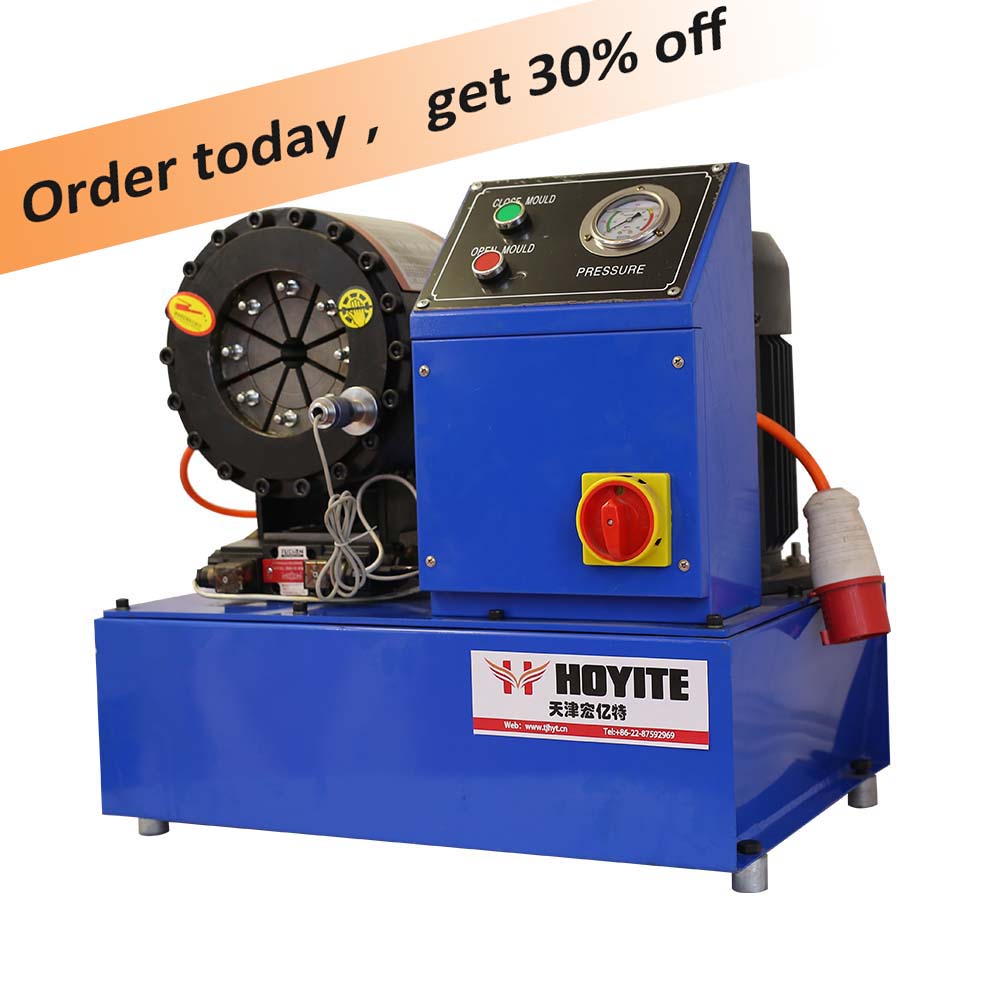

A desktop crimping machine is a compact device designed for efficiently and precisely crimping connectors onto cables. It combines a sturdy frame, adjustable settings, and intuitive controls to streamline the crimping process. With its ergonomic design, it offers ease of use and versatility for various crimping applications.
Main Specification |
|
| Crimping range | 1/4"-1"1/2 2SP (6-38mm) |
| Voltage&motor | 380V(4KW)/220V(3KW) |
| Opening without dies | 110mm |
| Hydraulic oil box | 45L(USE 32L) |
| Dies of quantity | 10 sets |
| Systematic pressure | 31.5MPa/26.5MPa |
| Largest pressure | 500T |
| Quick change dies | Options |
| Optional accessories | Movable caster/Metal handle |
| Volume(LxWxH) | 95×63×70cm |
| Net weight | 240KG(573lb) |
| Efficiency(reference) | 200pcs/Hour |
Payment：Support T/T(Bank transfer),Weston Union,Paypal,Cred card,Online Pay and other payment method.
First，put the machine on a fumigation-free wooden pallet and wrap it with moisture-proof plastic film.
Then, put it into a wooden box and fix the wooden box with a steel belt.
Finally, use a forklift to transport the wooden box onto a truck.
