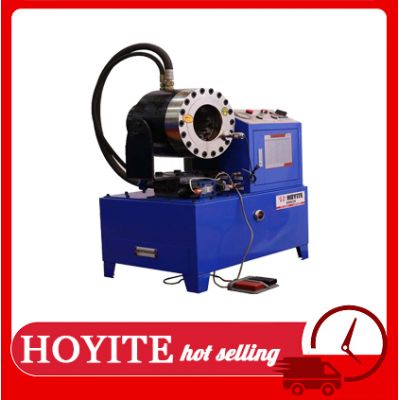

AutoCrimp Pro: Automated Hose Crimping Machine for Streamlined Production

Product ID : HYT-32C

Product Tags : Crimping Machine

Product Attributes :

Streamline your production process with the AutoCrimp Pro. This automated hose crimping machine ensures efficient and consistent crimps without compromising quality. With its advanced automation features and reliable operation, achieve high productivity and precise connections. The AutoCrimp Pro is the perfect solution for optimizing your crimping workflow.

Product Description

HYT-32C Button type
Main Specification
Crimper range	1/4"-1-1/2" 1&2S (6-38mm)
Voltage&motor	380V(4KW)/220V(3KW)
Opening without dies	110mm
Hydraulic oil box	35L(USE 32L)
Dies of quantity	8 sets
Systematic pressure	30MPa
Largest pressure	490T
Quick change dies	Options
Optional accessories	Dies shelf(HYT-38C)
Volume(LxWxH)	95x63x70cm
Net weight	240KG(528lb)
Efficiency(reference)	200pcs/Hour
