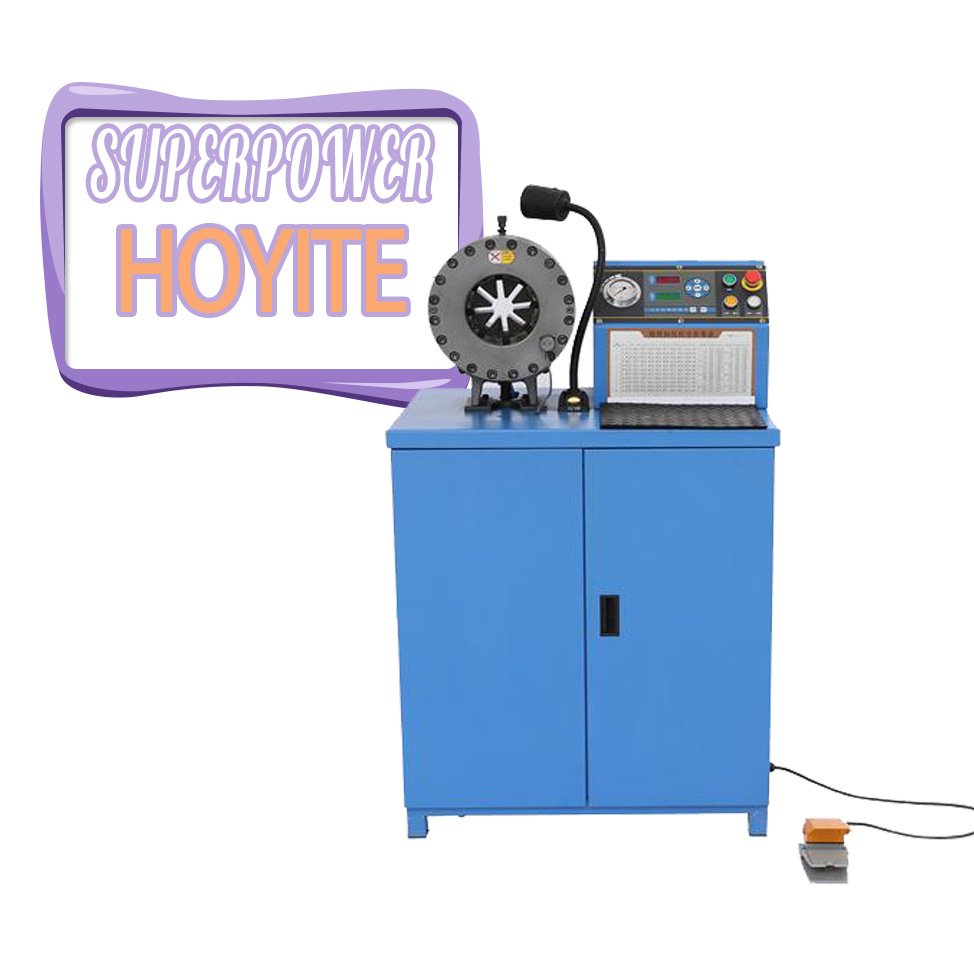

HYT-C91 Heavy-Duty Six-Layer Hose Crimping Machine

Product ID : HYT-C91

Product Tags : Crimping Machine

Product Attributes :

The UltimateGrip Max is the go-to solution for heavy-duty crimping of six-layer hoses. Engineered for strength and durability, this machine delivers exceptional gripping force and precise crimps. With its high-capacity design, it tackles even the most challenging applications with ease, ensuring superior performance and longevity

Product Description

HYT-C91 CNC type
Main Specification
Crimper range	1/4"-2" 4SP (6-51mm)
Voltage&motor	380V(4KW)/220V(3KW)
Opening without dies	122mm
Hydraulic oil box	45L(USE 36L)
Dies of quantity	10 sets
Systematic pressure	30MPa
Largest pressure	640T
Quick change dies	Options
Optional accessories	Movable caster/Metal handle
Volume(LxWxH)	80x63x130cm
Net weight	310KG(683lb)
Efficiency(reference)	400pcs/Hour
