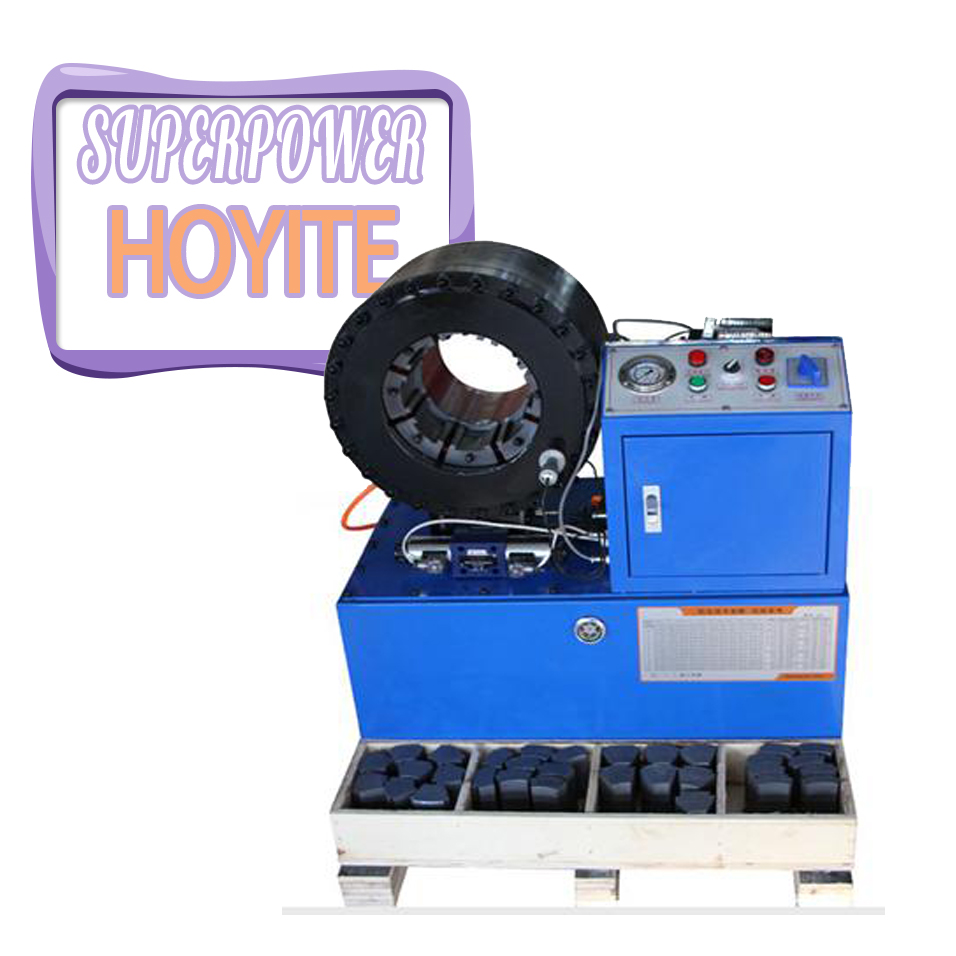

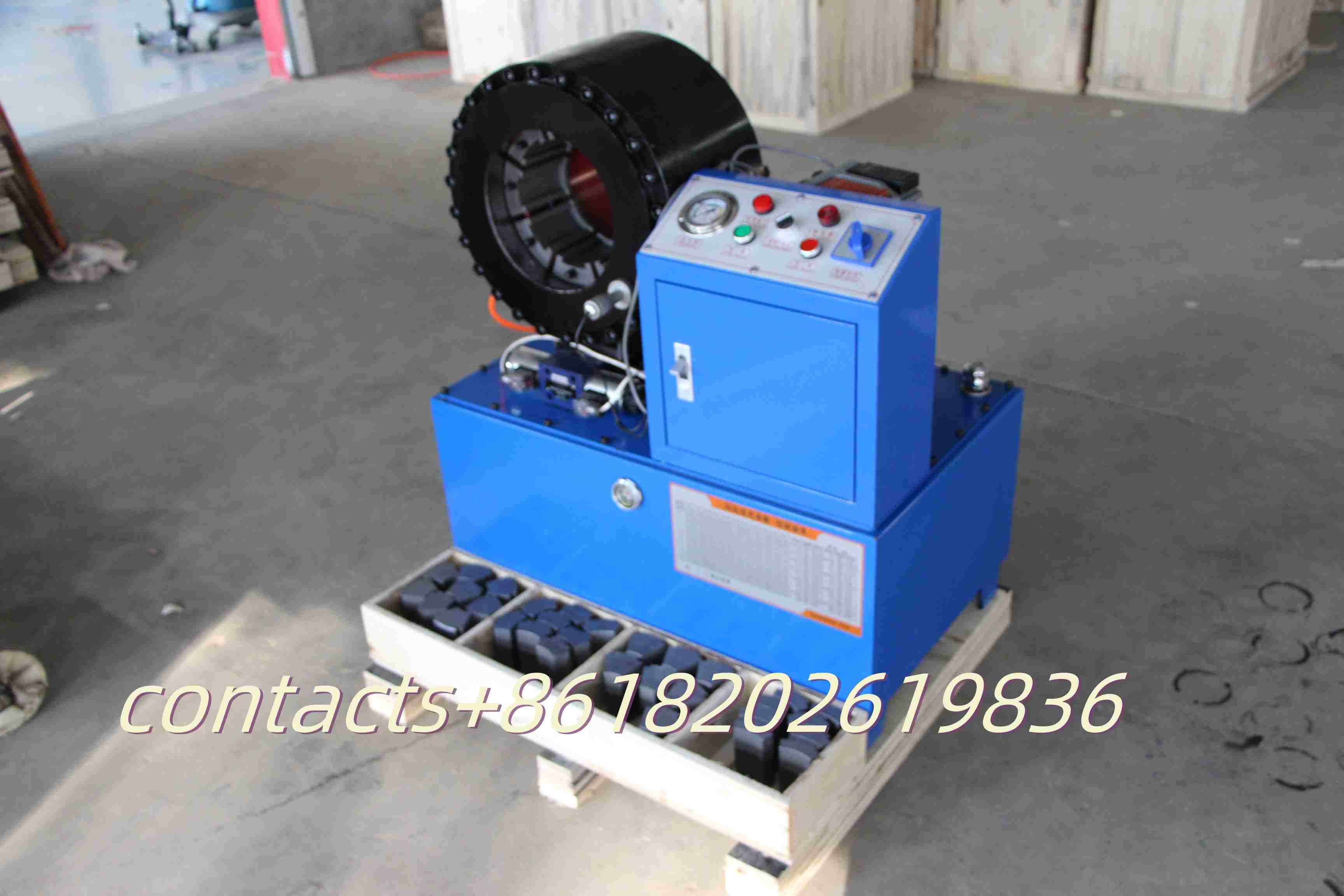

SwageMaster Max: Industrial Hydraulic Hose Swage Tool with Advanced Crimping Capabilities

Product ID : HYT-120B

Product Tags : Crimping Machine

Product Attributes :

the industrial-grade hydraulic hose swage tool designed for professionals. This robust tool not only excels at swaging fittings onto hydraulic hoses but also offers advanced crimping capabilities. With its high-pressure hydraulic system and precision engineering, achieve flawless crimps and secure connections for even the most demanding applications. The SwageMaster Max is the ultimate choice for professionals seeking superior performance and versatility.

Product Description

HYT-120B, Button type
Main Specification
Crimper range	1/4" -3" 6S (6-102mm)
Voltage&motor	380V(5KW)
Opening without dies	183mm
Hydraulic oil box	80L(USE 65L)
Dies of quantity	13 sets
Systematic pressure	30MPa
Largest pressure	1500T
Quick change dies	Optional (6-51)
Optional accessories	No
Volume(LxWxH)	91x59x121cm
Net weight	510KG(1124lb)
Efficiency(reference)	200pcs/Hour
