TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.

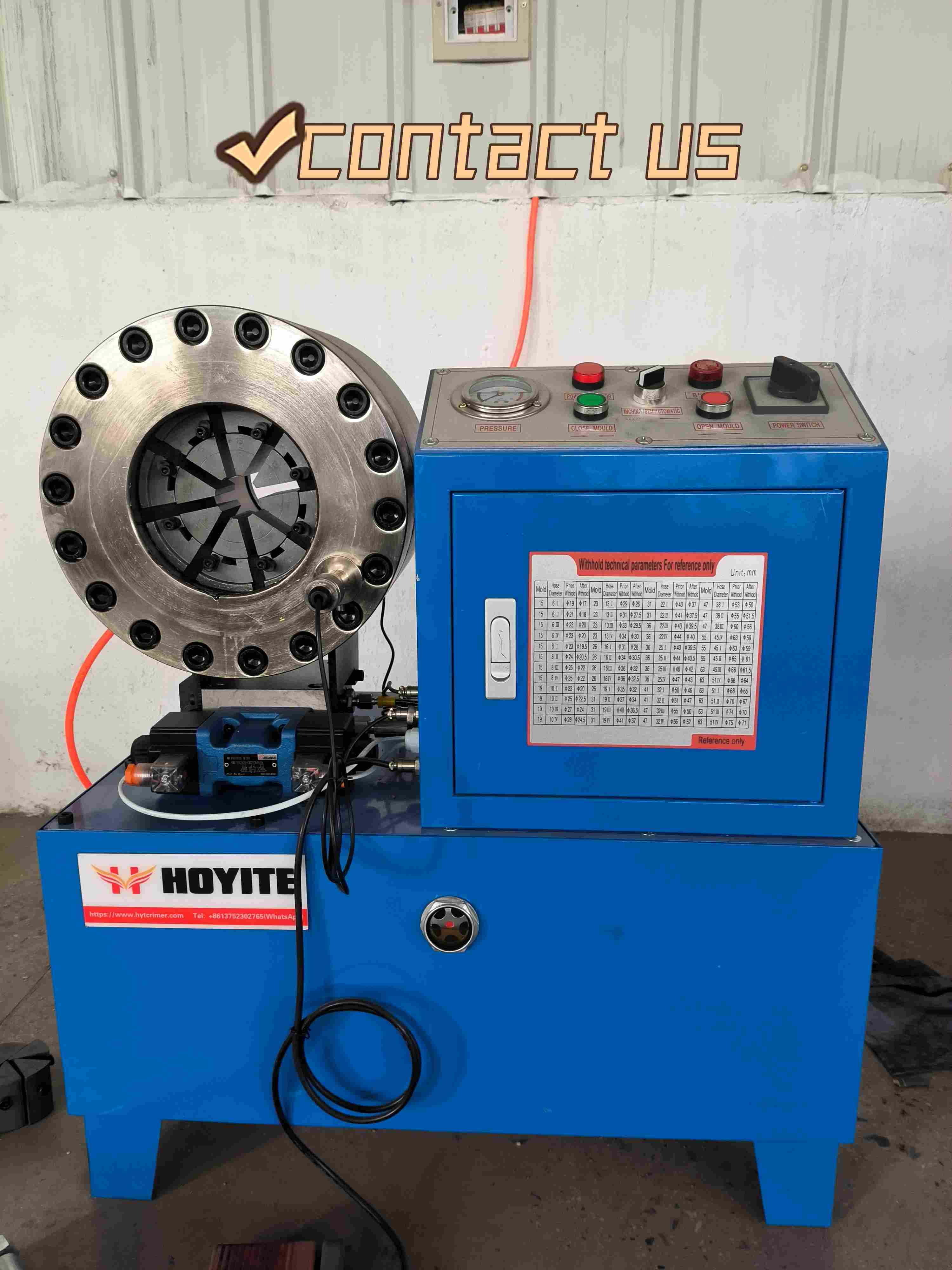

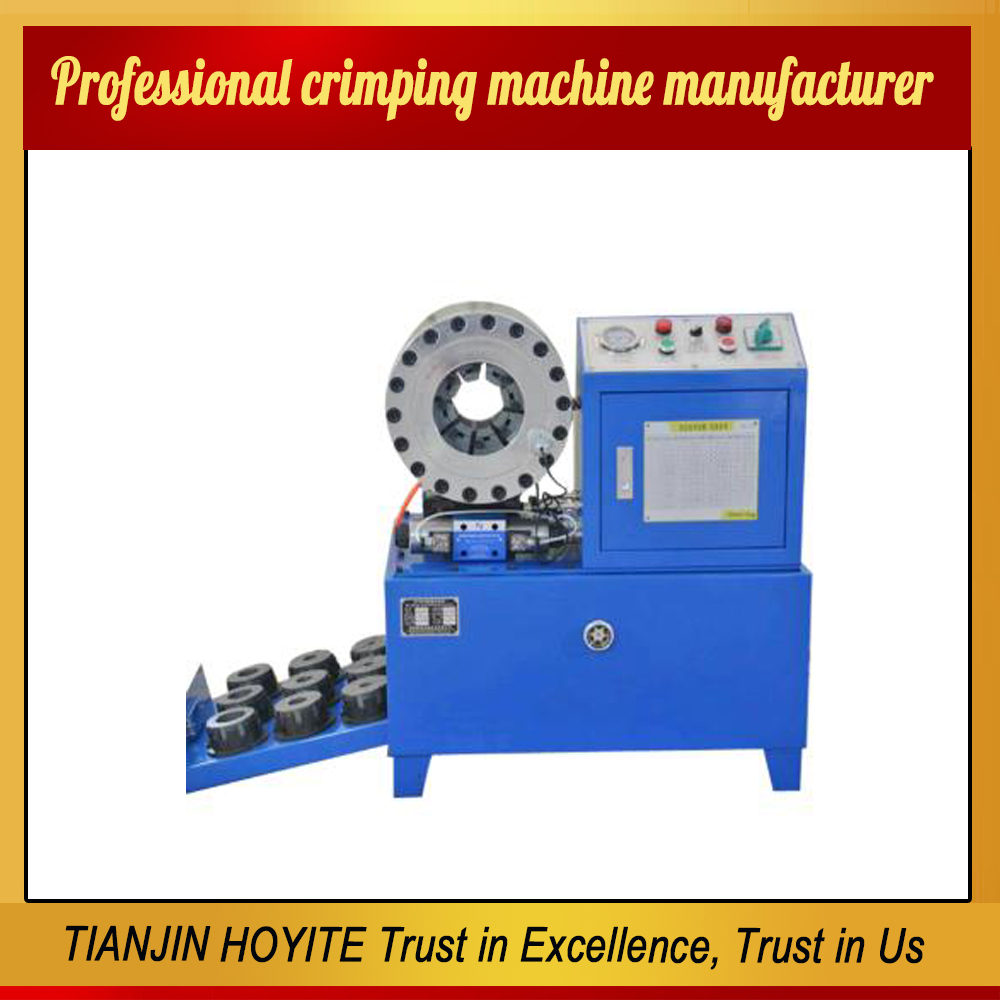

a versatile hose crimping machine that can handle a wide range of applications. From hydraulic hoses to industrial hoses, this machine offers flexibility and adaptability, allowing you to meet the diverse needs of your customers with ease.
| Main Specification | |
| Crimper range | 1/4"-2" 4SP (6-51mm) |
| Voltage&motor | 380V(4KW)/220V(3KW) |
| Opening without dies | 114mm |
| Hydraulic oil box | 40L(USE 32L) |
| Dies of quantity | 10 sets |
| Systematic pressure | 31.5MPa/26.5MPa |
| Largest pressure | 400T |
| Quick change dies | Options |
| Optional accessories | Movable caster/Metal handle |
| Volume(LxWxH) | 80×53×87cm |
| Net weight | 220KG(485lb) |
| Efficiency(reference) | 200pcs/Hour |
