TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.
Develivery time: 7 days
Model: HYT-12V Button type, 12V/24V (vehicle-mounted), 2", 4S Crimping Range
Voltage: 380V 50HZ 3Phase or based on customer’s need .
Warranty : One year warranty on major components
| HYT-12V Button type, 12V/24V (vehicle-mounted), 2", 4S | |
| Main Specification | |
| Crimper range | 1/4" -2" 4S (6-51mm) |
| Voltage&motor | 12V(3.6KW) (24V) |
| Hydraulic oil box | 4L(USE 3.5L) |
| Dies of quantity | 10 sets |
| Systematic pressure | 30MPa |
| Largest pressure | 500T |
| Quick change dies | Optional |
| Volume(LxWxH) | 65×60x60cm |
| Net weight | 180KG(396lb) |
| Efficiency(reference) | 80pcs/Hour |

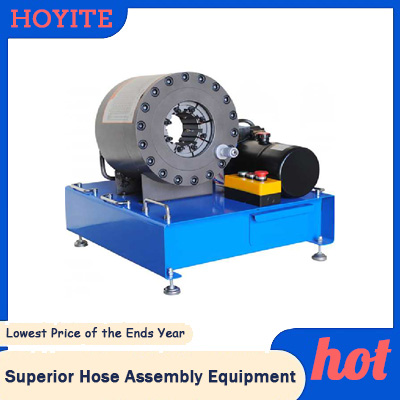

HYT-12V Hose Crimper For Hydraulic Hoses Packaging And Shipping:
Plastic film wrapping;
Wooden packing;
The hydraulic oil tank is shipped empty, please fill it with No. 46 hydraulic oil to use the machine;
There are exposed wires left in the machine. Please replace them with new wires you prepared and use them with electricity.
