TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.
Develivery time: 7 days

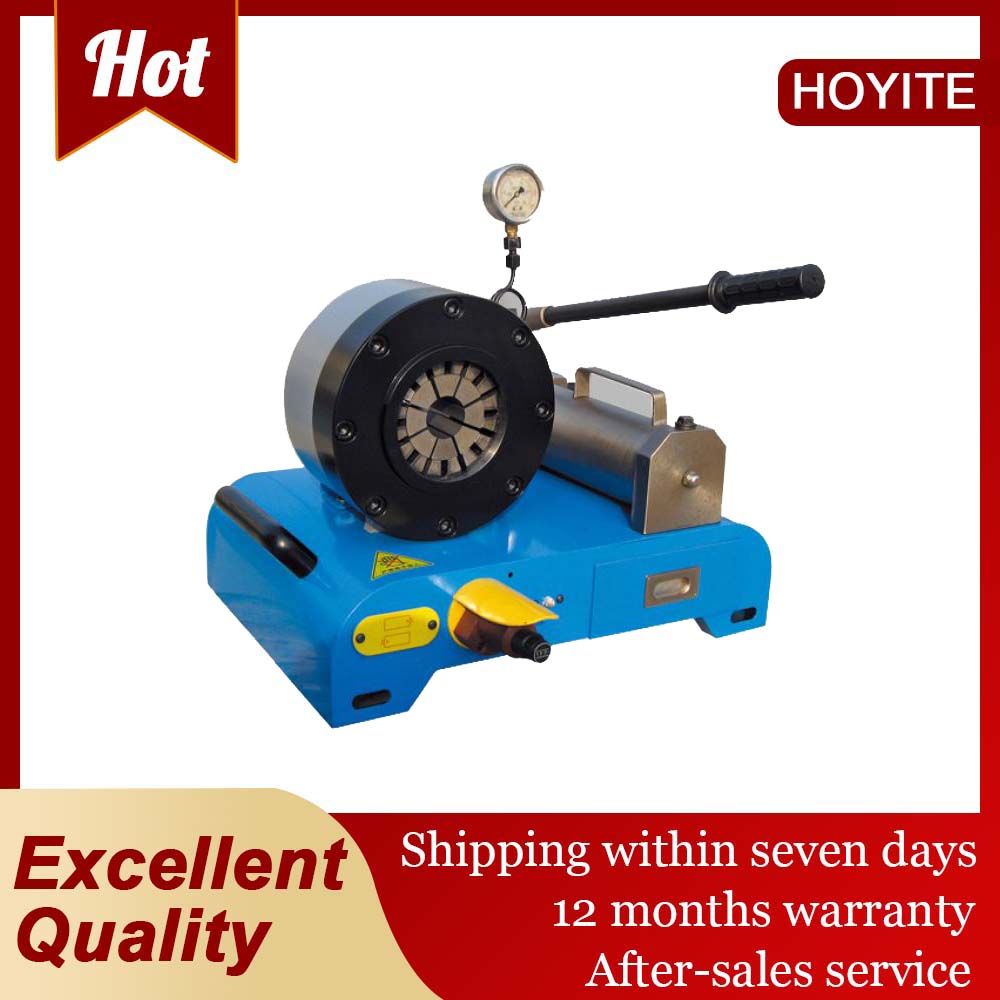

Model: HYT-52M Manual Type, 1-1/2", 4S Crimping Range
Voltage: 380V 50HZ 3Phase or based on customer’s need .
Warranty : One year warranty on major components
HYT-52M Manual Type, 1-1/2", 4S |
|
| Main Specification | |
| Crimper range | 1/8" -1-1/4" 4S (4-32mm) |
| Voltage&motor | Manual |
| Opening without dies | 108mm |
| Hydraulic oil box | 4.5L(USE 4L) |
| Dies of quantity | 12 sets |
| Systematic pressure | 30MPa |
| Largest pressure | 1370T |
| Quick change tool | Include |
| Optional accessories | No |
| Volume(LxWxH) | 55x52x40cm |
| Net weight | 80KG(176lb) |
| Efficiency(reference) | 20pcs/Hour |
Plastic film wrapping;
Wooden packing;
The hydraulic oil tank is shipped empty, please fill it with No. 46 hydraulic oil to use the machine;
There are exposed wires left in the machine. Please replace them with new wires you prepared and use them with electricity.
