TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.
Develivery time: 7 days

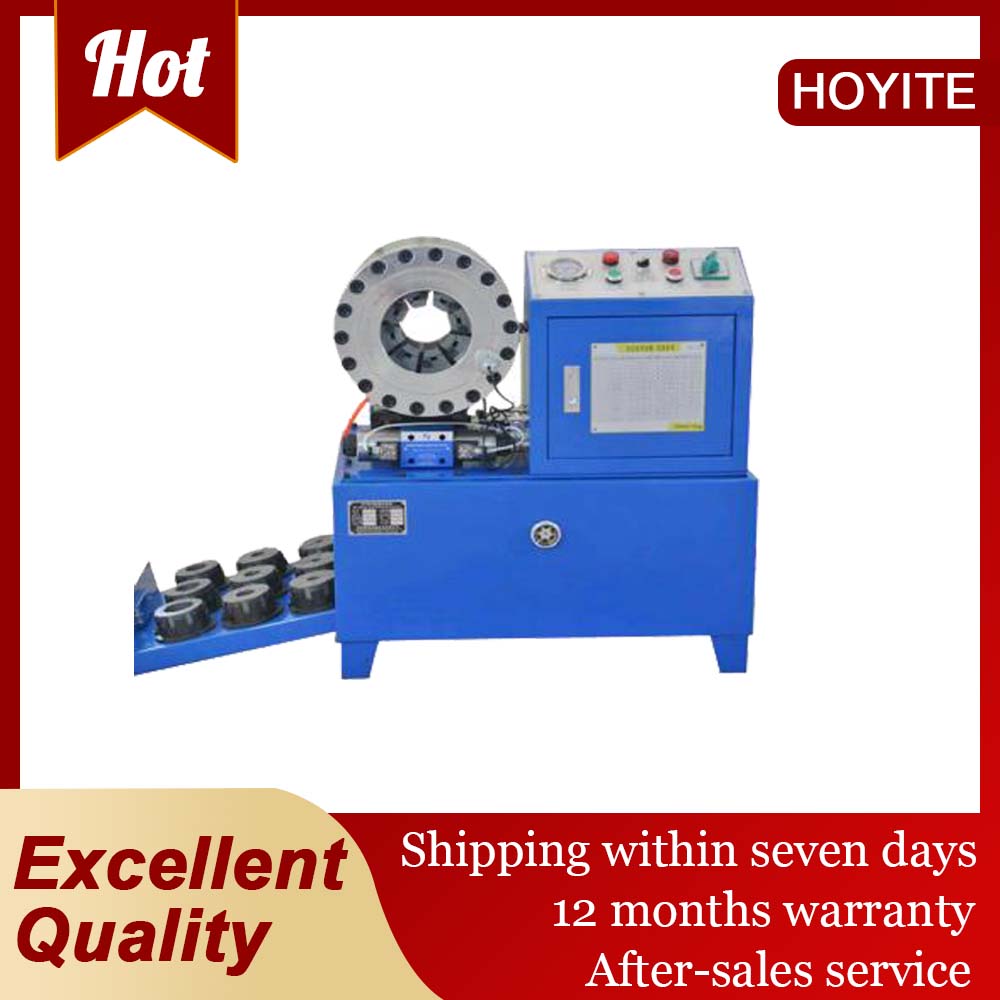

Model: HYT-68 Button type Electric, 2", 4S Crimping Range
Voltage: 380V 50HZ 3Phase or based on customer’s need .
Warranty : One year warranty on major components
HYT-68 Button type Electric, 2", 4S |
|
| Main Specification | |
| Crimper range | 1/4"-2" 4SP (6-51mm) |
| Voltage&motor | 380V(4KW)/220V(3KW) |
| Opening without dies | 114mm |
| Hydraulic oil box | 40L(USE 32L) |
| Dies of quantity | 10 sets |
| Systematic pressure | 31.5MPa/26.5MPa |
| Largest pressure | 500T |
| Quick change dies | Options |
| Optional accessories | Movable caster/Metal handle |
| Volume(LxWxH) | 80×53×87cm |
| Net weight | 260KG(573lb) |
| Efficiency(reference) | 200pcs/Hour |
Plastic film wrapping;
Wooden packing;
The hydraulic oil tank is shipped empty, please fill it with No. 46 hydraulic oil to use the machine;
There are exposed wires left in the machine. Please replace them with new wires you prepared and use them with electricity.
