TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.
Develivery time: 7 days

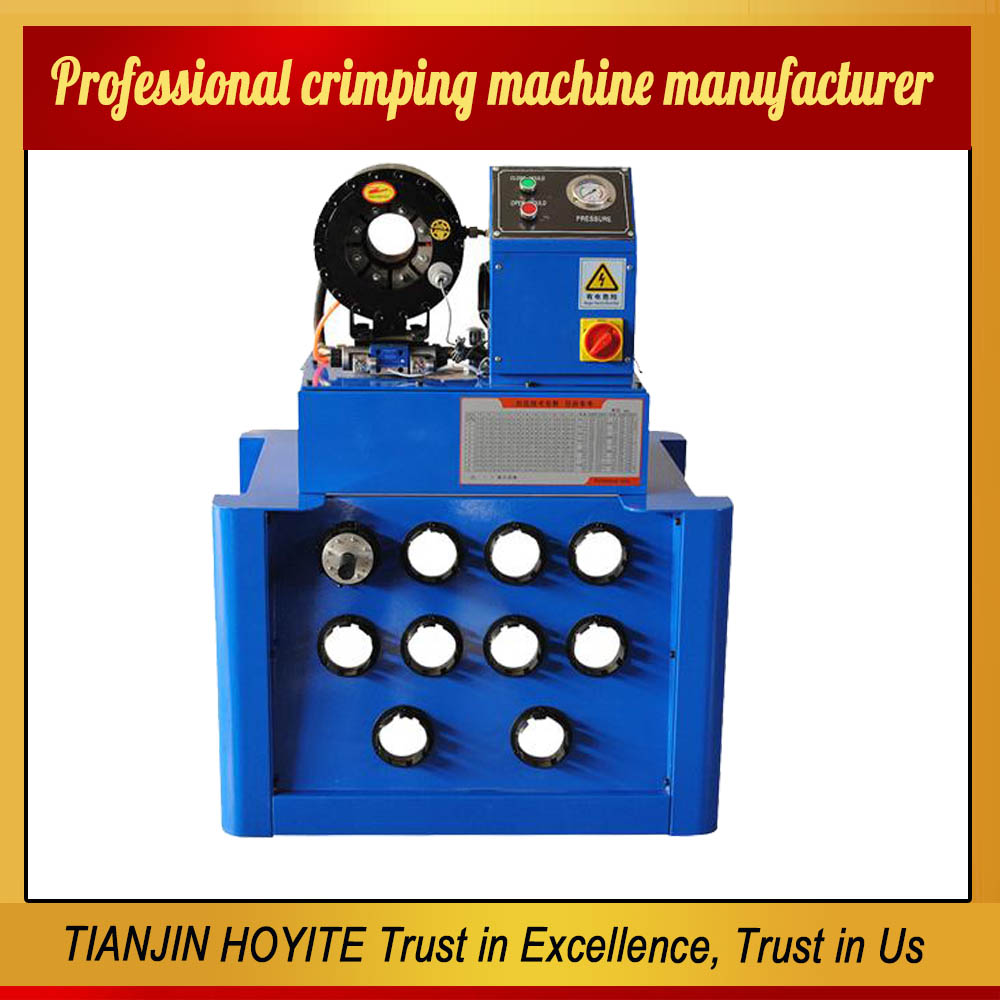

Model: HYT-32C Electric Button Type, 1"1/2, 2S Crimping Range
Voltage: 380V 50HZ 3Phase or based on customer’s need .
Warranty : One year warranty on major components
HYT-32C Electric Button Type, 1"1/2, 2S |
|
| Main Specification | |
| Crimper range | 1/4"-1-1/2" 1&2S (6-38mm) |
| Voltage&motor | 380V(4KW)/220V(3KW) |
| Opening without dies | 110mm |
| Hydraulic oil box | 35L(USE 32L) |
| Dies of quantity | 8 sets |
| Systematic pressure | 30MPa |
| Largest pressure | 490T |
| Quick change tool | Optional |
| Optional accessories | Dies shelf |
| Volume(LxWxH) | 95x63x70cm |
| Net weight | 240KG(528lb) |
| Efficiency(reference) | 200pcs/Hour |

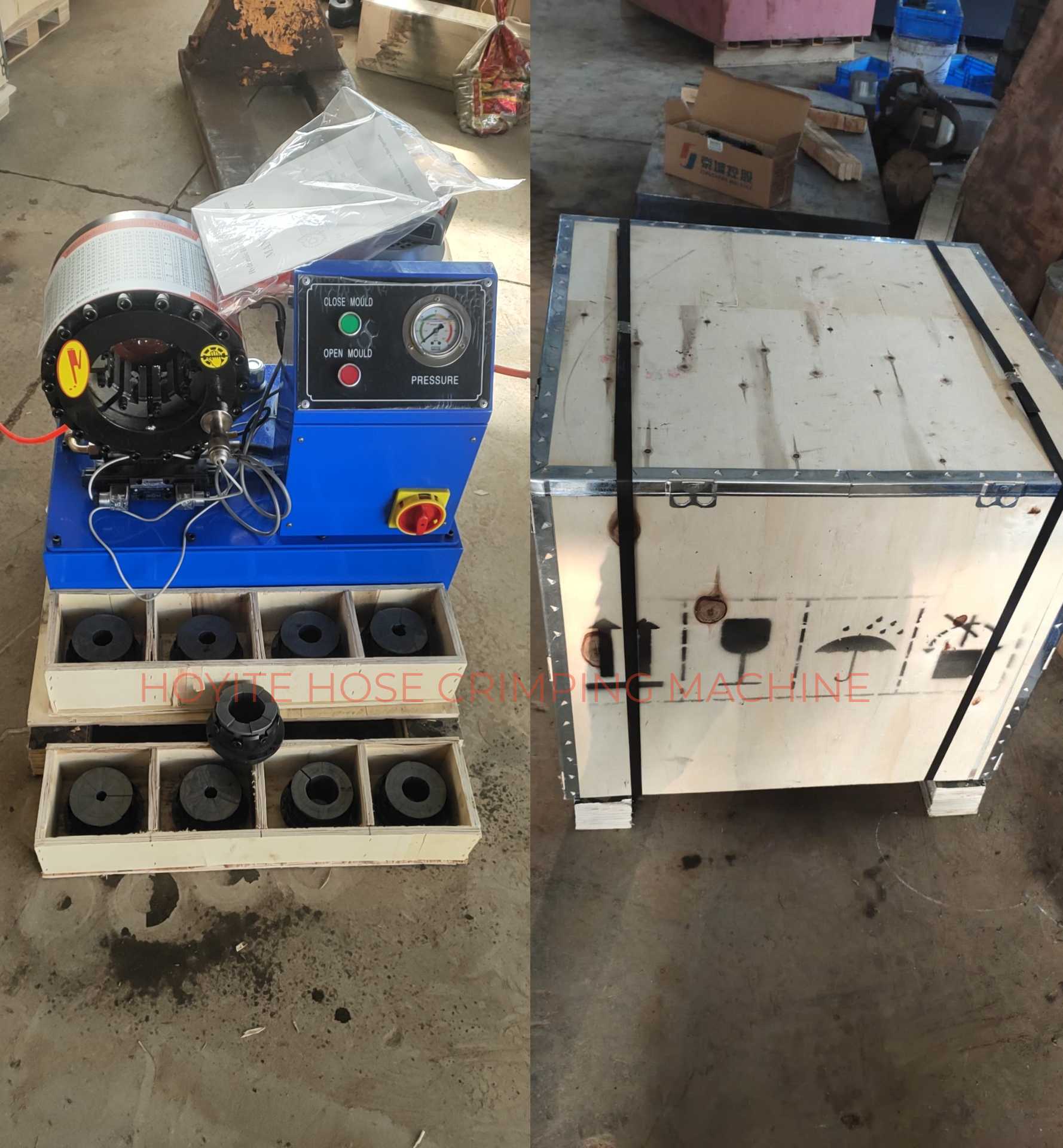

Plastic film wrapping;
Wooden packing;
The hydraulic oil tank is shipped empty, please fill it with No. 46 hydraulic oil to use the machine;
There are exposed wires left in the machine. Please replace them with new wires you prepared and use them with electricity.
