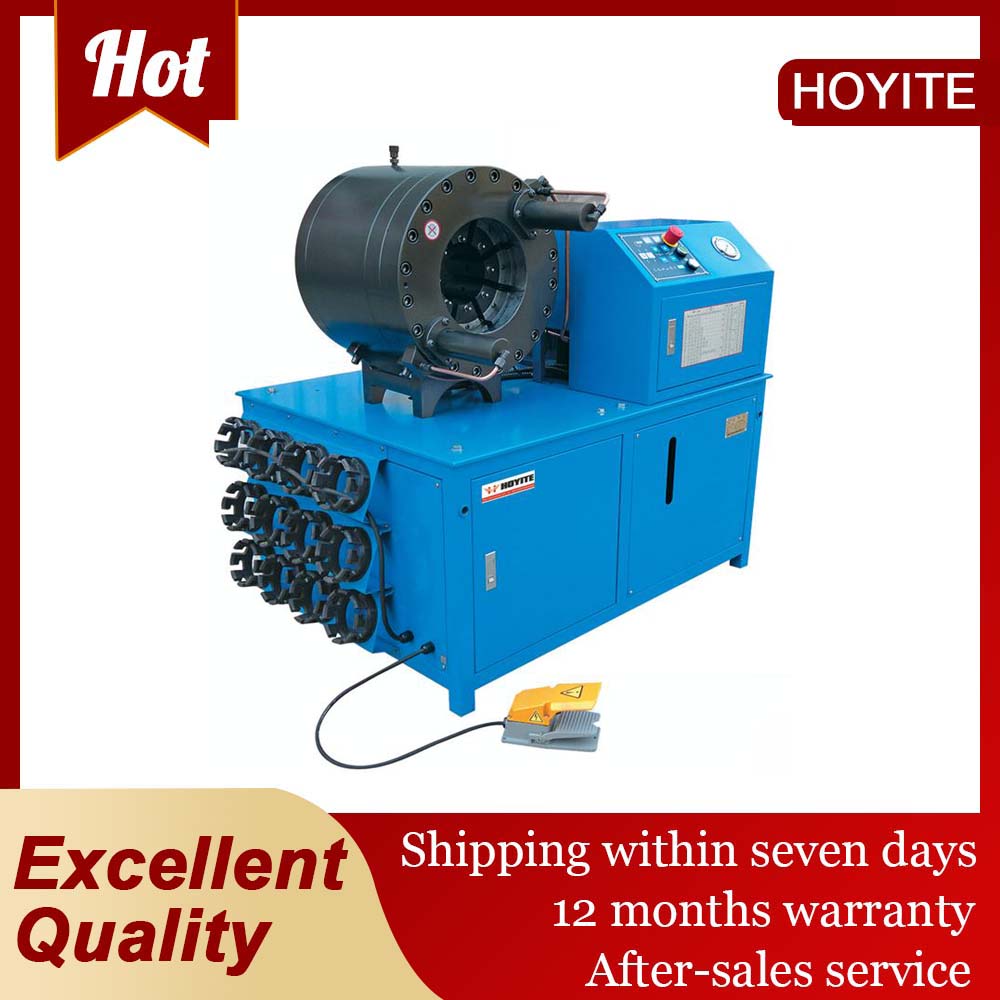

HYT-A60 Vertical Hose Crimping Machine
Product Description
- Powerful Motor: The HYT - A60 Vertical Hose Crimping Machine is equipped with a high - efficiency and robust motor. This motor, with its stable power output, serves as a reliable power source, minimizing the need for frequent maintenance and ensuring continuous operation, thus enhancing overall productivity.
- Sturdy Structure: Constructed from high - quality materials, its body features a sturdy structure. This design enables the machine to endure heavy - duty usage and diverse working conditions, guaranteeing long - term stable operation.
- Advanced CNC Control System: Equipped with an advanced CNC control system, the machine offers precise parameter setting and real - time work process monitoring. The user - friendly interface simplifies operations, significantly reducing the risk of misoperation. This not only improves work efficiency but also ensures the high - quality crimping of hoses.
- Specialized Design: Specifically designed for a crimping diameter range of 2" - 4" with 6 layers, this machine caters to the specific needs of industries such as construction, mining, and industrial manufacturing.
Technical Parameters
|
HYT - A60 Vertical Hose Crimping Machine
|
| Crimping Range |
2" - 4" 6S (6 - 102mm) |
| Voltage & Motor |
380V / 5.5kw |
| Opening without Dies |
220mm |
| Hydraulic Oil Box |
80L (Use 70L) |
| Quantity of Dies |
10 sets |
| System Pressure |
30MPa |
| Maximum Pressure |
1500T |
| Quick - change Dies |
No |
| Optional Accessories |
No |
| Volume (L×W×H) |
110×70×120cm |
| Net Weight |
980KG (2160lb) |
| Reference Efficiency |
300pcs/Hour
|
Package & Warranty

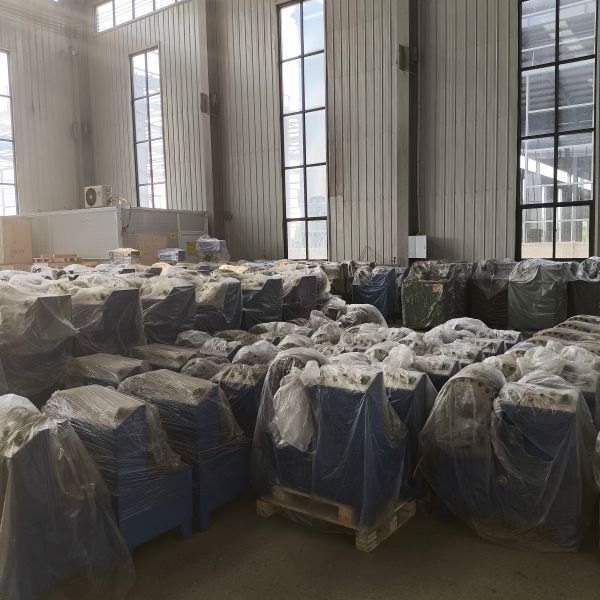

- Package: Fumigation - free wooden pallets that meet international export standards are used for packaging. This not only facilitates customs inspection but also ensures the safety of the machine during transportation. The machine is firmly fixed on the wooden pallet to prevent any slipping and shaking, and is wrapped with a moisture - proof film to protect it from dampness and abrasion during transit.
- Warranty: We offer a lifetime warranty for this machine, demonstrating our confidence in its quality and our commitment to customer satisfaction.
Payment & Shipping
- Payment: We accept various payment methods, including L/C, D/P, T/T, Western Union, and MoneyGram, providing convenience for customers worldwide.
- Shipping: The main transportation methods are sea or air. For large - scale orders, sea freight is a cost - effective option, while for samples or urgent orders, FEDEX/DHL/UPS/TNT can be used for fast delivery.
