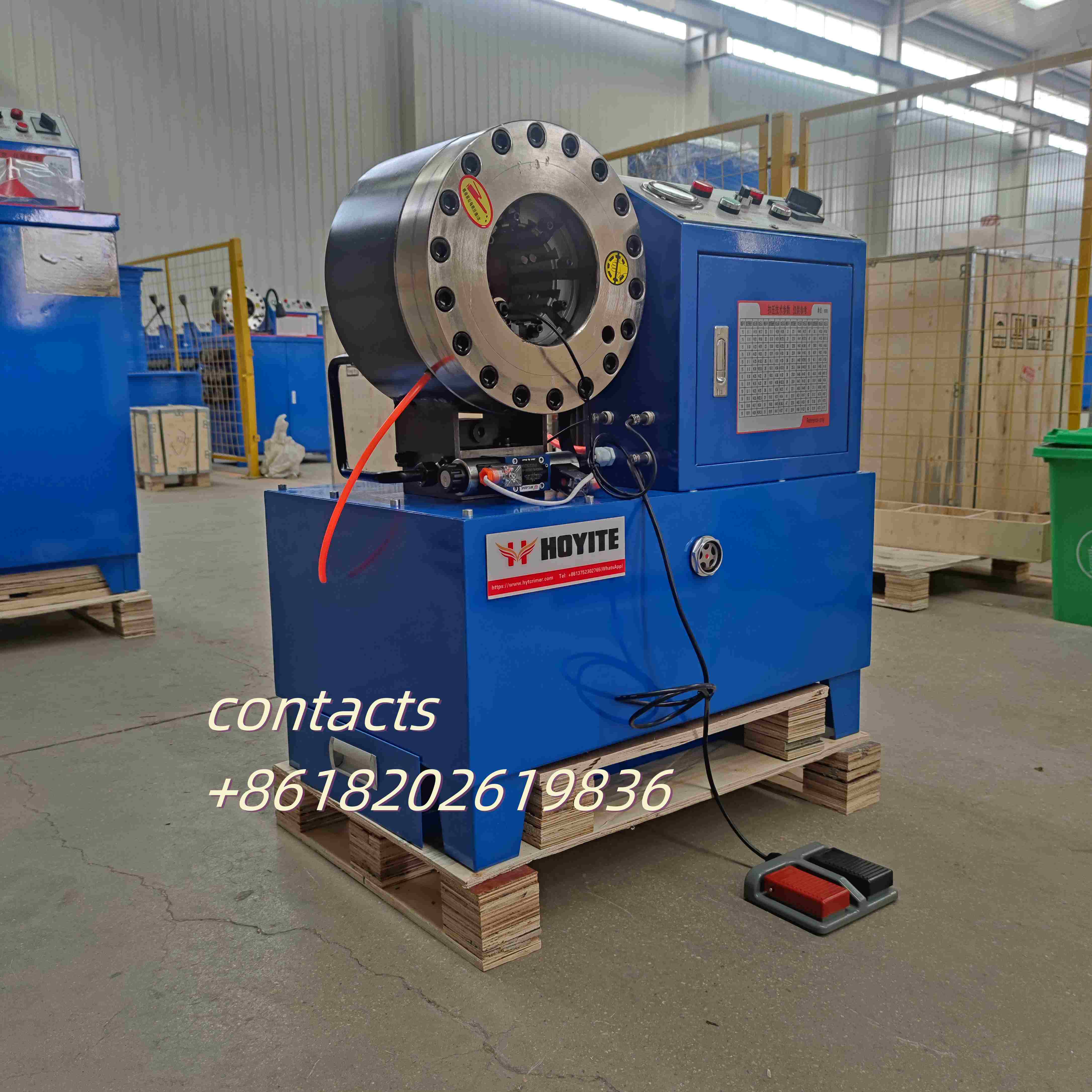

FlexiCrimp CNC Plus: CNC-Controlled Hose Crimping Machine for Versatile Applications

Product ID : HYT-68

Product Tags : Crimping Machine

Product Attributes :

FlexiCrimp CNC Plus is the ultimate solution for versatile hose crimping applications. With its CNC-controlled operation and adjustable settings, this machine offers unparalleled flexibility and accuracy. From standard hoses to specialty configurations, achieve precise and customized crimps with ease using the FlexiCrimp CNC Plus

Product Description

Main Specification
Crimper range	1/4"-2" 4SP (6-51mm)
Voltage&motor	380V(4KW)/220V(3KW)
Opening without dies	114mm
Hydraulic oil box	40L(USE 32L)
Dies of quantity	10 sets
Systematic pressure	31.5MPa/26.5MPa
Largest pressure	400T
Quick change dies	Options
Optional accessories	Movable caster/Metal handle
Volume(LxWxH)	80×53×87cm
Net weight	220KG(485lb)
Efficiency(reference)	200pcs/Hour
