HYT-32C Hydraulic Press Hose

Product ID : HYT-32C

Product Tags : Crimping Machine

Product Attributes :

HYT-32C hydraulic press hose crimping machine features a large head opening. It's suitable for crimping two-layer hydraulic press hoses up to 1.5 inches in size. With a simple button control panel, you can crimp the hydraulic press hose connections conveniently, quickly, and precisely. It has an easy-to-operate pedal control. Optionally, a quick mold change and a mold support can be installed, making its work with hydraulic press hoses more efficient. This machine is ideal for various hydraulic press hose applications.

Product Description

HYT-32C 1/4"~1-1/2" Button-type Hydraulic Hose Crimping Machine

Product Construction

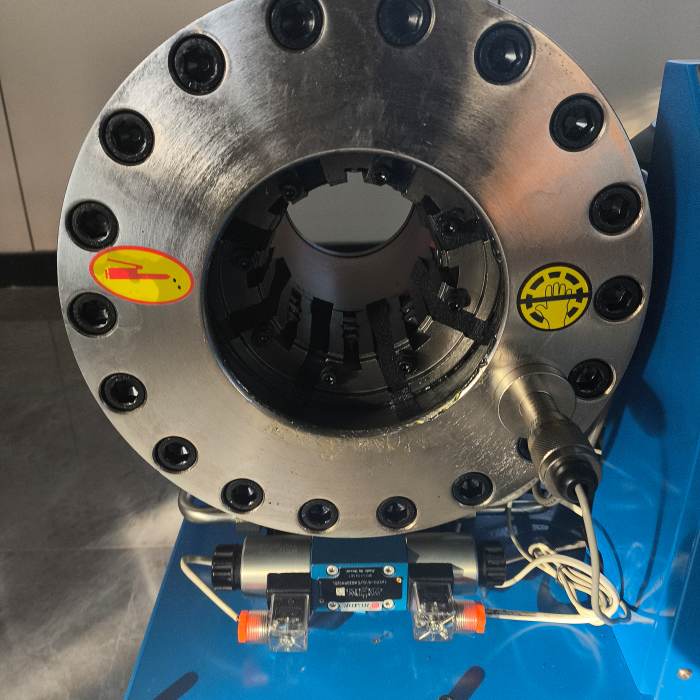

High-quality forged steel head: Robust and wear-resistant, with a long service life.
Button operation panel: Allows for more precise fixing of the hose.
Standard-sized head: Suitable for crimping hoses from 1/4" to 1-1/2" that meet the standards of R1 and R2, such as oil hoses, water hoses, etc.

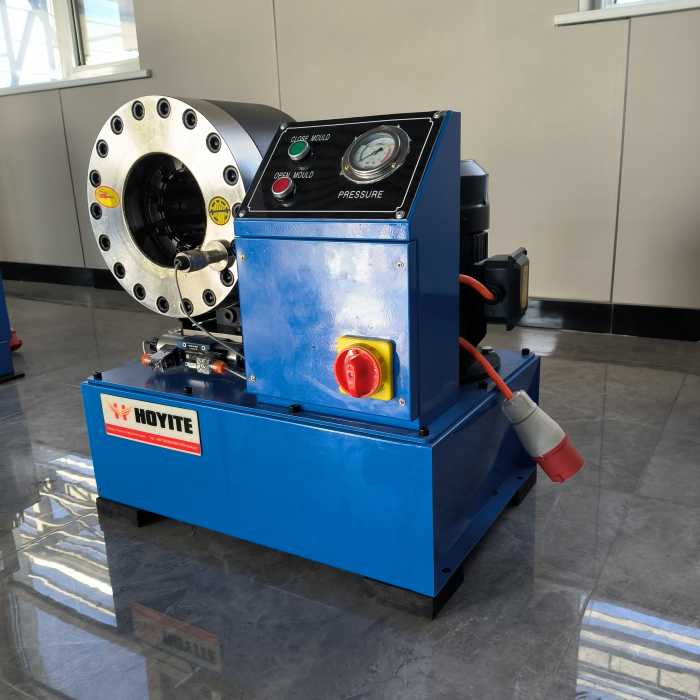

Visible operation components: The prominent red knob on the machine controls the motor switch, while the green and red buttons on the control panel control the clamping and opening of the mold, which is easy to operate.
Expandable crimping range: The crimping range can be expanded up to 2 inches.

Technical Parameters

HYT-32C 1/4"~1-1/2" Button-type Hydraulic Hose Crimping Machine
Crimping range	1/4"-1-1/2" 1&2S (6 - 38mm)
Voltage&motor	380V(4KW)/220V(3KW)
Opening without dies	110mm
Hydraulic oil box	35L(USE 32L)
Dies of quantity	8 sets
Systematic pressure	30MPa
Largest pressure	490T
Quick change dies	Options
Optional accessories	Dies shelf(HYT-38C)
Volume(LxWxH)	95x63x70cm
Net weight	240KG(528lb)
Efficiency(reference)	200pcs/Hour

Product Information

Payment methods: Support T/T (bank transfer), Western Union, Paypal, credit card, and other online payment methods.
Packaging: First, place the machine on a non-fumigated wooden platform and wrap it with moisture-resistant plastic film. Then, put it in a wooden box and secure the wooden box with a steel strap. Finally, use a forklift to transport the wooden box onto a truck.
Warranty: We offer a lifetime warranty for this hose crimping machine, which means that we will always be available to provide technical assistance and solutions in case of any problems, ensuring you a safe and worry-free investment.
Delivery time: 3 to 7 days.
Port of shipment: Tianjin, China.
