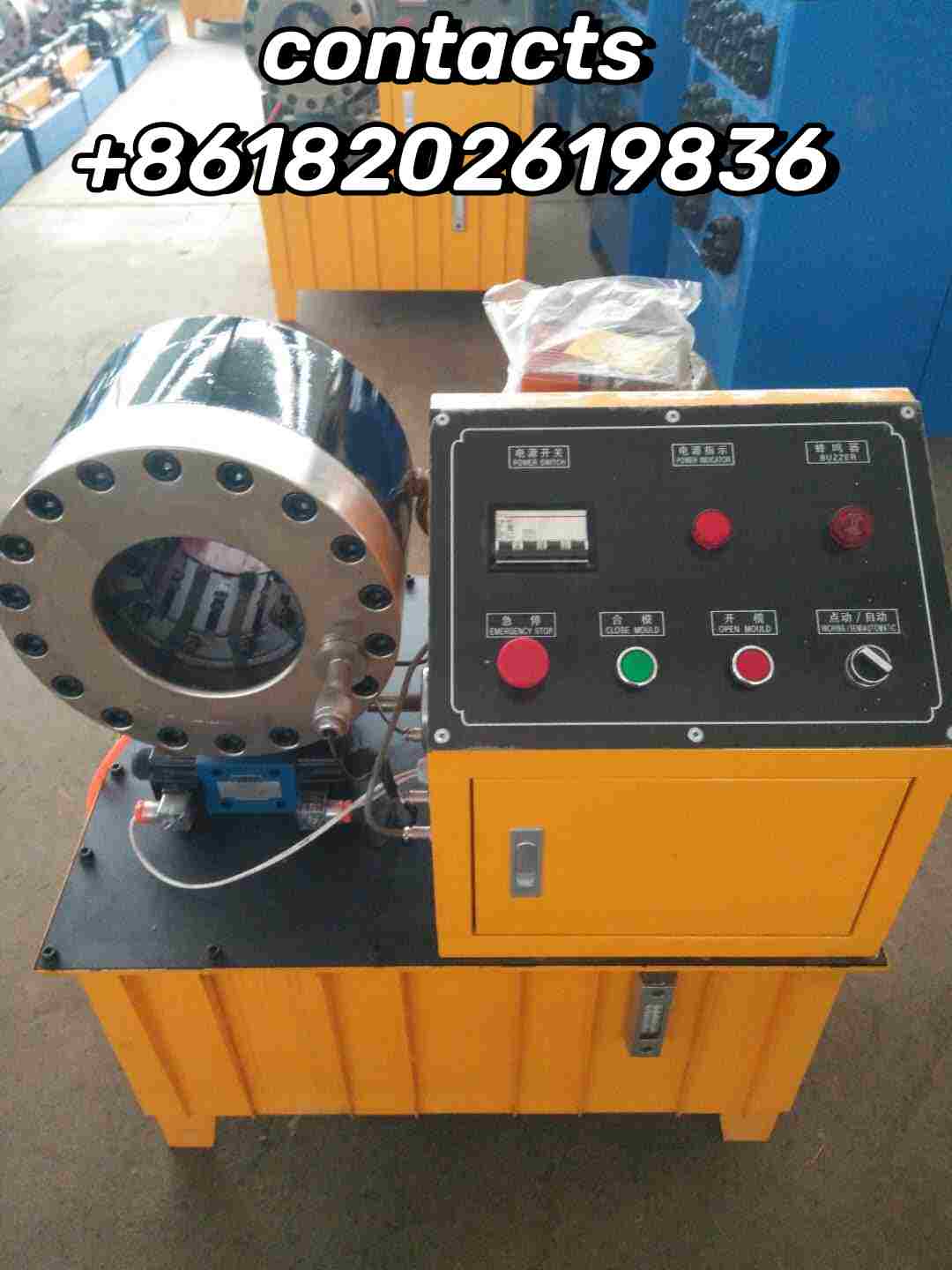

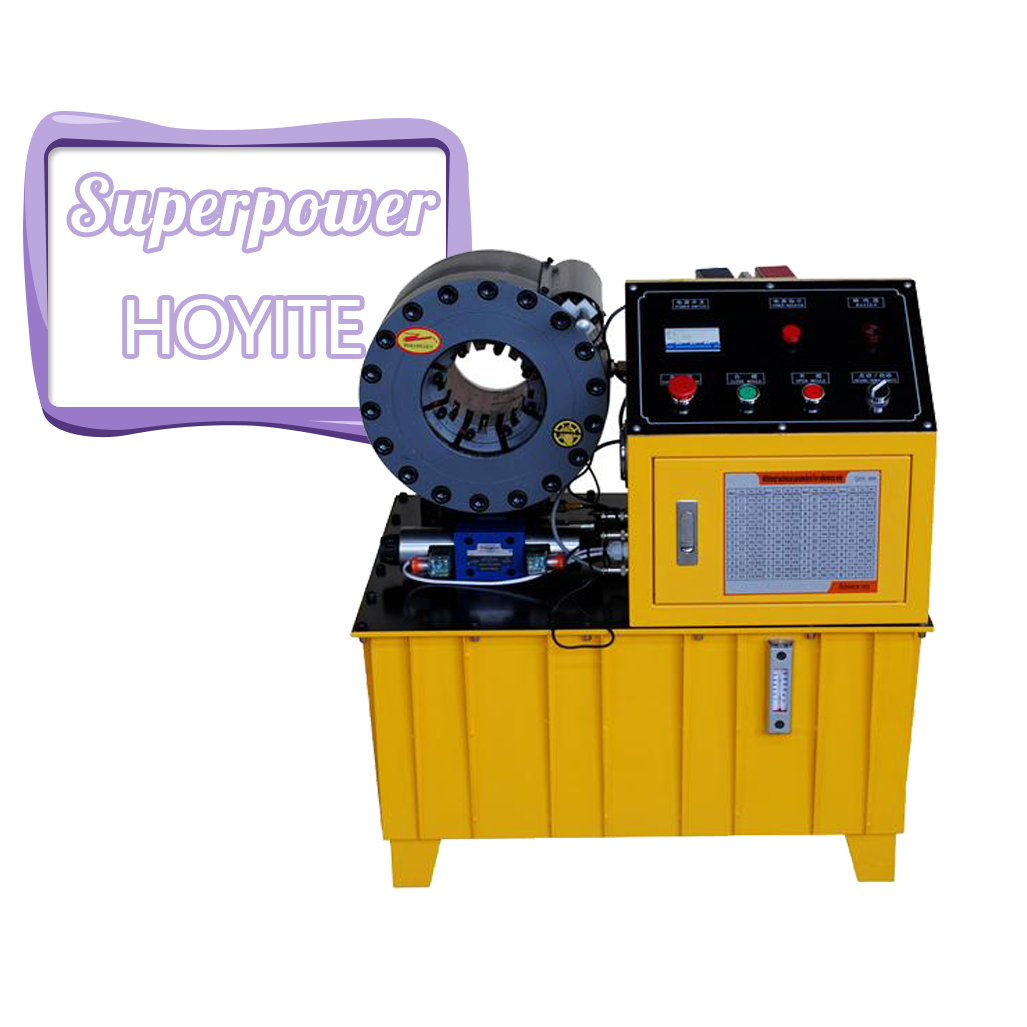

HYT-51 MaxiGrip Pro: Advanced Benchtop Hose Crimping Machine

Product ID : HYT-51

Product Tags : Crimping Machine

Product Attributes :

Maximize your crimping potential with the MaxiGrip Pro. This advanced benchtop hose crimping machine combines precision and versatility to handle a wide range of hose sizes and materials. With its user-friendly interface and superior gripping mechanism, achieve consistent and secure crimps effortlessly, ensuring optimal performance

Product Description

HYT-51 Button type
Main Specification
Crimper range	1/4"-2" 4SP (6-51mm)
Voltage&motor	380V(4KW)/220V(3KW)
Opening without dies	114mm
Hydraulic oil box	40L(USE 32L)
Dies of quantity	10 sets
Systematic pressure	31.5MPa/26.5MPa
Largest pressure	500T
Quick change dies	Options
Optional accessories	Movable caster/Metal handle
Volume(LxWxH)	79×60×94cm
Net weight	280KG(617lb)
Efficiency(reference)	200pcs/Hour
