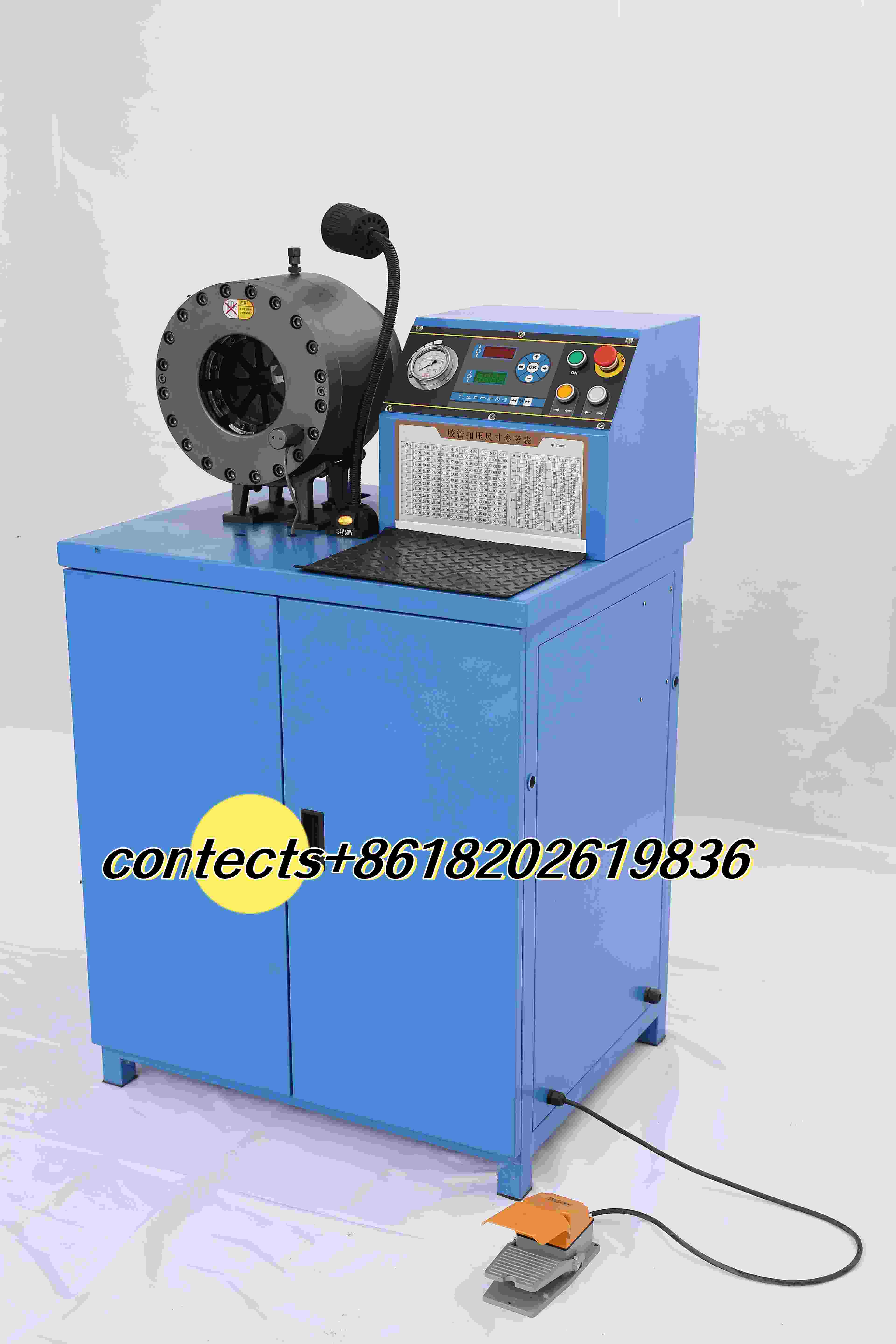

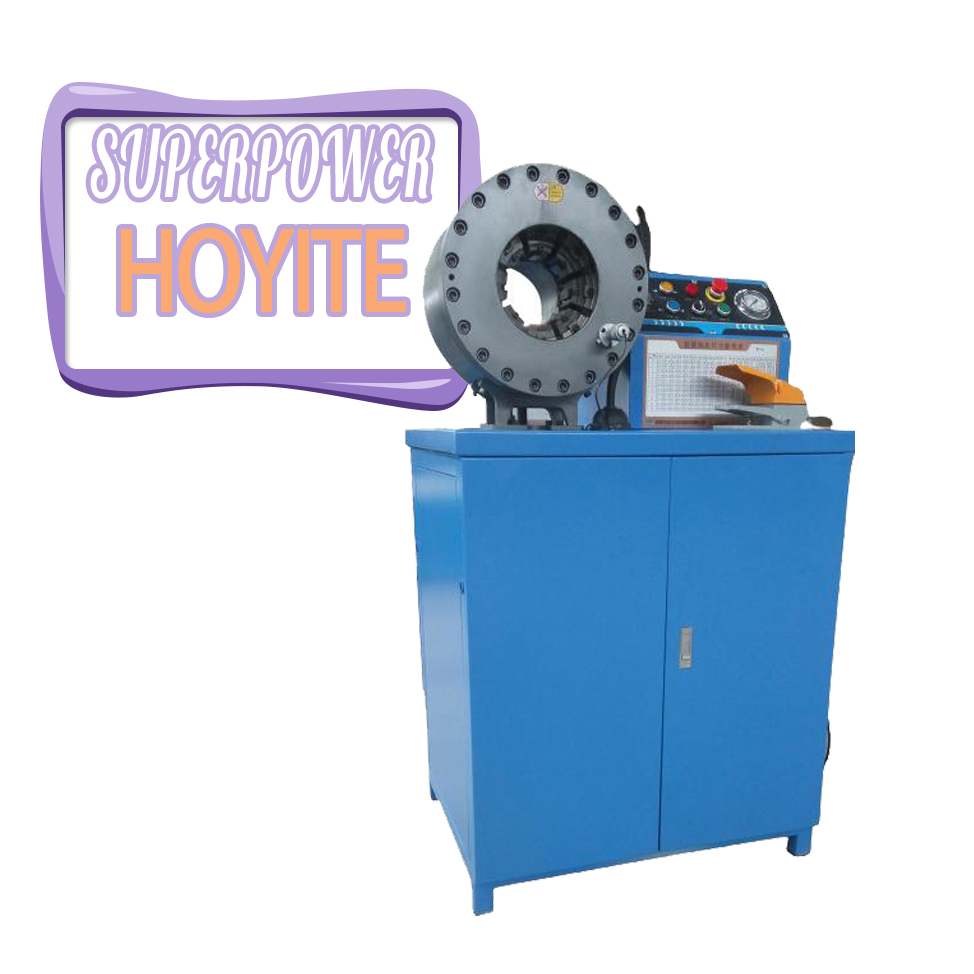

Experience precision at its finest with the PrecisionCrimp CNC Pro. This advanced crimping machine, equipped with CNC control, ensures accurate and repeatable crimps for six-layer hoses. Its cutting-edge technology and intuitive interface empower users to achieve flawless connections, meeting the highest standards of quality and performance.
HYT-L91 CNC type |
|
Main Specification |
|
Crimper range |
1/4"to2-1/2" 4SP (6-64mm) |
Voltage&motor |
380V(4KW)/220V(3KW) |
Opening without dies |
134mm |
Hydraulic oil box |
65L(USE 60L) |
Dies of quantity |
11 sets |
Systematic pressure |
30MPa |
Largest pressure |
640T |
Quick change dies |
Options |
Optional accessories |
Movable caster/Metal handle |
Volume(LxWxH) |
80x64x140cm |
Net weight |
326KG(619lb) |
Efficiency(reference) |
400pcs/Hour |
