Develivery time: 7 days

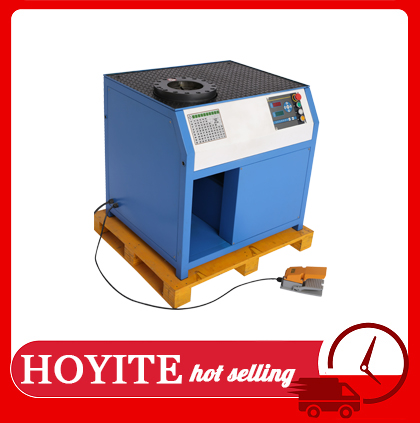

Model: HYT-52N Electric Button / CNC Display Crimping Range
Voltage: 380V 50HZ 3Phase or based on customer’s need .
Warranty : One year warranty on major components
HYT-52N Electric Button / CNC Display |
|
| Main Specification | |
| Crimper range | 1/4" -2" (5-51mm) |
| Voltage&motor | 380V(3KW) |
| Hydraulic oil box | 50L(USE40L) |
| Dies of quantity | 10 sets |
| Systematic pressure | 26MPa |
| Largest pressure | 600T |
| Optional accessories | Electric Button / CNC Display |
| Volume(LxWxH) | 99x80x105cm |
| Net weight | 270KG(595lb) |
| Efficiency(reference) | 800 pcs/Hour |
Plastic film wrapping;
Wooden packing;
The hydraulic oil tank is shipped empty, please fill it with No. 46 hydraulic oil to use the machine;
There are exposed wires left in the machine. Please replace them with new wires you prepared and use them with electricity.
