TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.
Develivery time: 7 days

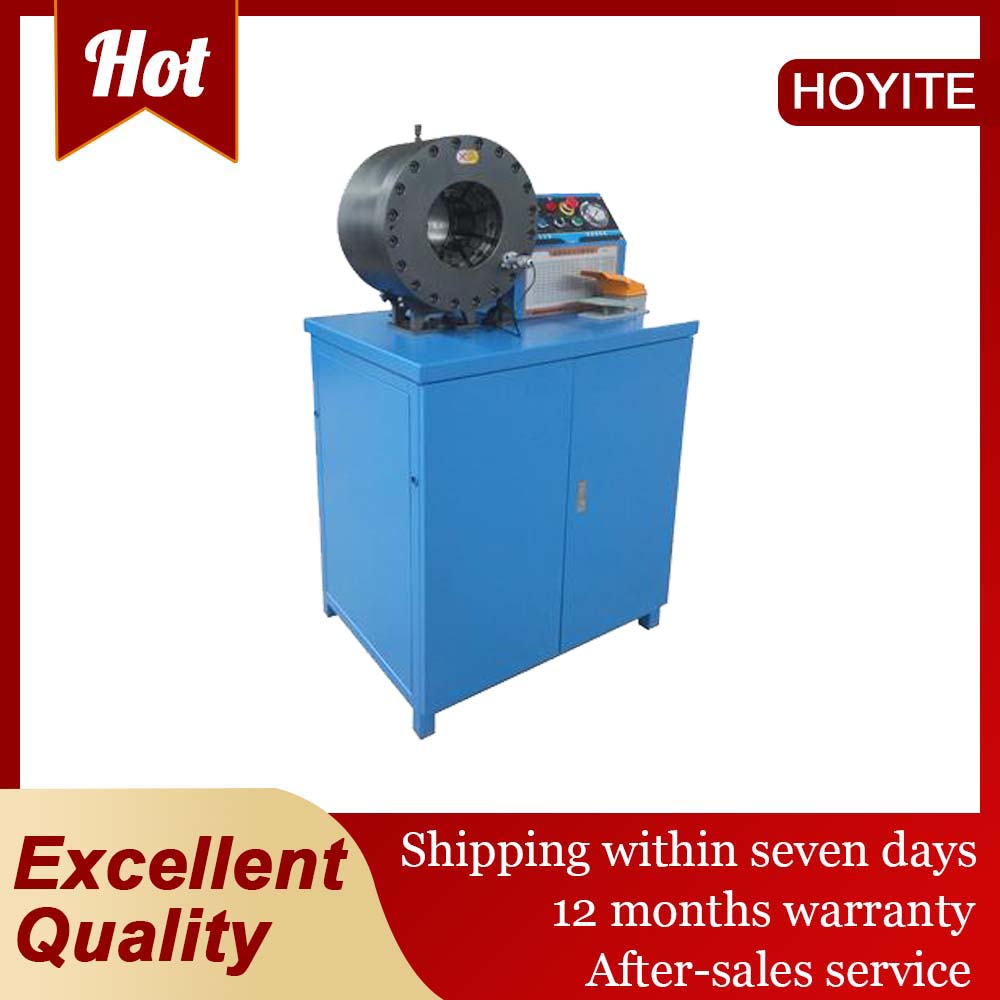

Model: HYT-M91 CNC type Electric, 3", 4S Crimping Range
Voltage: 380V 50HZ 3Phase or based on customer’s need .
Warranty : One year warranty on major components
HYT-M91 CNC type Electric, 3", 4S |
|
| Main Specification | |
| Crimper range | 1/4"-3" 4SP (6-76mm) |
| Voltage&motor | 380V(4KW)/220V(3KW) |
| Opening without dies | 168mm |
| Hydraulic oil box | 65L(USE 60L) |
| Dies of quantity | 14 sets |
| Systematic pressure | 30MPa |
| Largest pressure | 900T |
| Quick change dies | Options |
| Optional accessories | Movable caster/Metal handle |
| Volume(LxWxH) | 80x64x140cm |
| Net weight | 326KG(619lb) |
| Efficiency(reference) | 400pcs/Hour |
Plastic film wrapping;
Wooden packing;
The hydraulic oil tank is shipped empty, please fill it with No. 46 hydraulic oil to use the machine;
There are exposed wires left in the machine. Please replace them with new wires you prepared and use them with electricity.
