Develivery time: 7 days

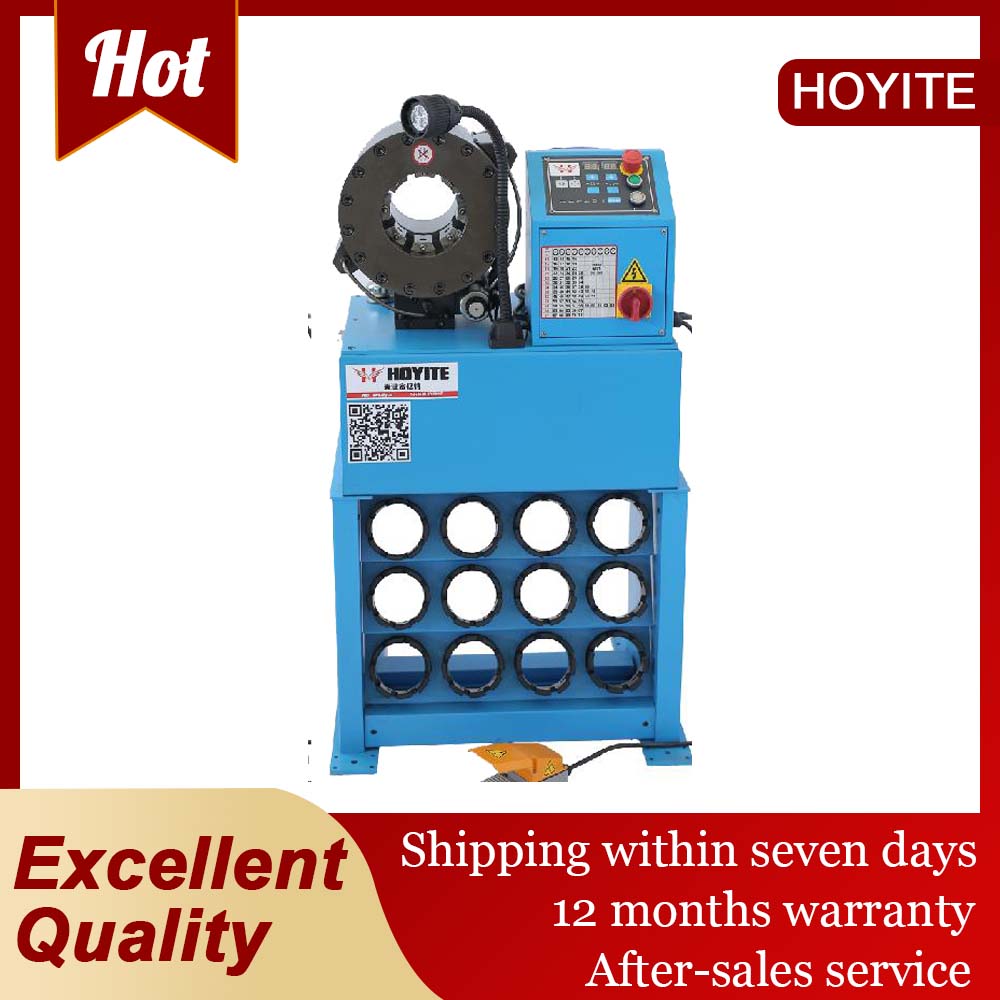

Model: HYT-B32 CNC display, 2", 6S Crimping Range
Voltage: 380V 50HZ 3Phase or based on customer’s need .
Warranty : One year warranty on major components
HYT-B32 CNC display, 2", 6S |
|
| Main Specification | |
| Crimper range | 1/4" -2" (6-51mm) |
| Voltage&motor | 380V(4KW)/220V(3KW) |
| Opening without dies | 122mm |
| Hydraulic oil box | 55L(USE 48L) |
| Dies of quantity | 13 sets |
| Systematic pressure | 32MPa |
| Largest pressure | 520T |
| Quick change tool | Options |
| Optional accessories | Movable caster/Metal handle |
| Volume(LxWxH) | 65x50x130cm |
| Net weight | 350KG(771lb) |
| Efficiency(reference) | 400pcs/Hour |
Plastic film wrapping;
Wooden packing;
The hydraulic oil tank is shipped empty, please fill it with No. 46 hydraulic oil to use the machine;
There are exposed wires left in the machine. Please replace them with new wires you prepared and use them with electricity.
