TIANJIN HOYITE RUBBER PRODUCTS CO.,LTD.
Develivery time: 7 days

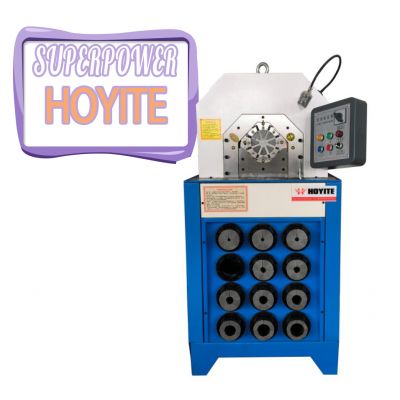

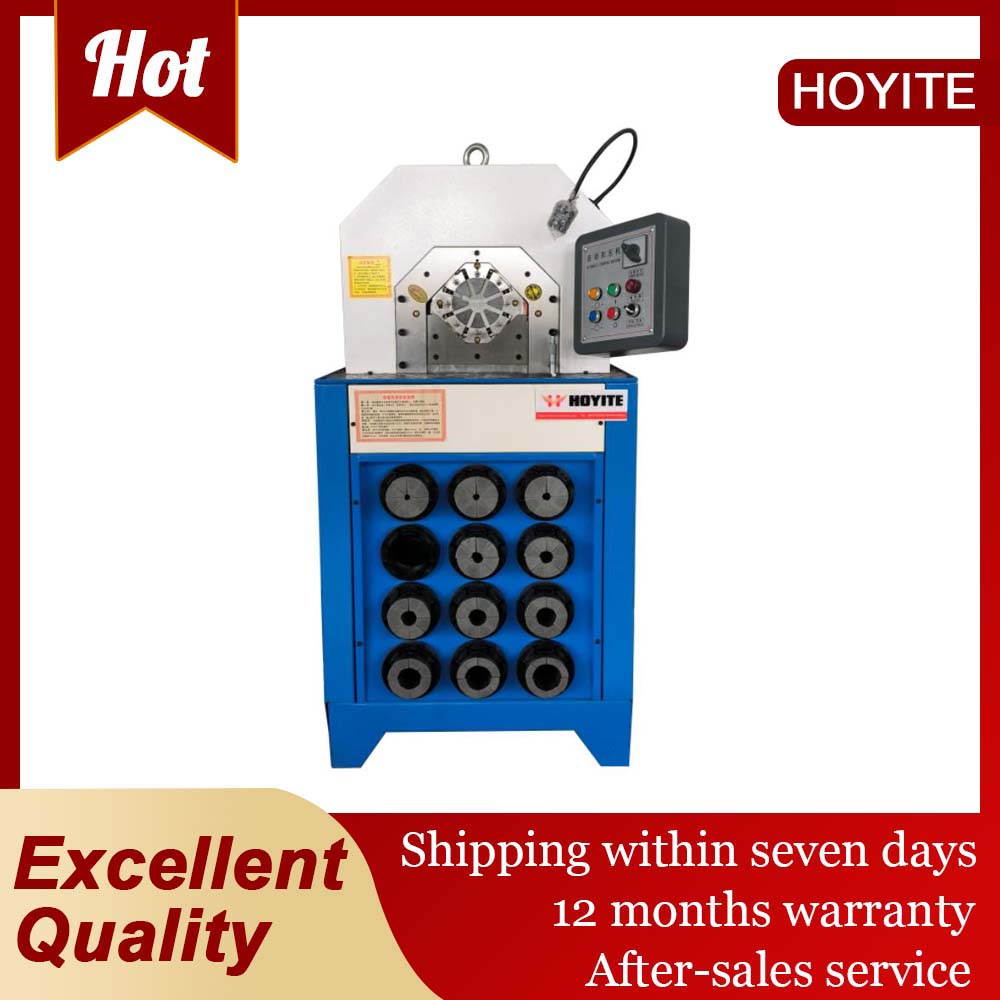

Model: HYT-56 , 2", 6S Electronic buttons/ CNC display/ CNC touch screen Crimping Range
Voltage: 380V 50HZ 3Phase or based on customer’s need .
Warranty : One year warranty on major components
HYT-56 , 2", 6SElectronic buttons/ CNC display/ CNC touch screen |
|
| Main Specification | |
| Crimper range | 1/4" -2" 6S (6-51mm) |
| Voltage&motor | 380V(4KW) |
| Opening without dies | 145mm |
| Hydraulic oil box | 100L(USE 90L) |
| Dies of quantity | 13 sets |
| Systematic pressure | 31.5Mpa |
| Largest pressure | 1000T |
| Quick change dies | Optional |
| Optional accessories | Movable caster/Metal handle |
| Volume(LxWxH) | 80x70x145cm |
| Net weight | 850KG(1874lb) |
| Efficiency(reference) | 300pcs/Hour |
Plastic film wrapping;
Wooden packing;
The hydraulic oil tank is shipped empty, please fill it with No. 46 hydraulic oil to use the machine;
There are exposed wires left in the machine. Please replace them with new wires you prepared and use them with electricity.
