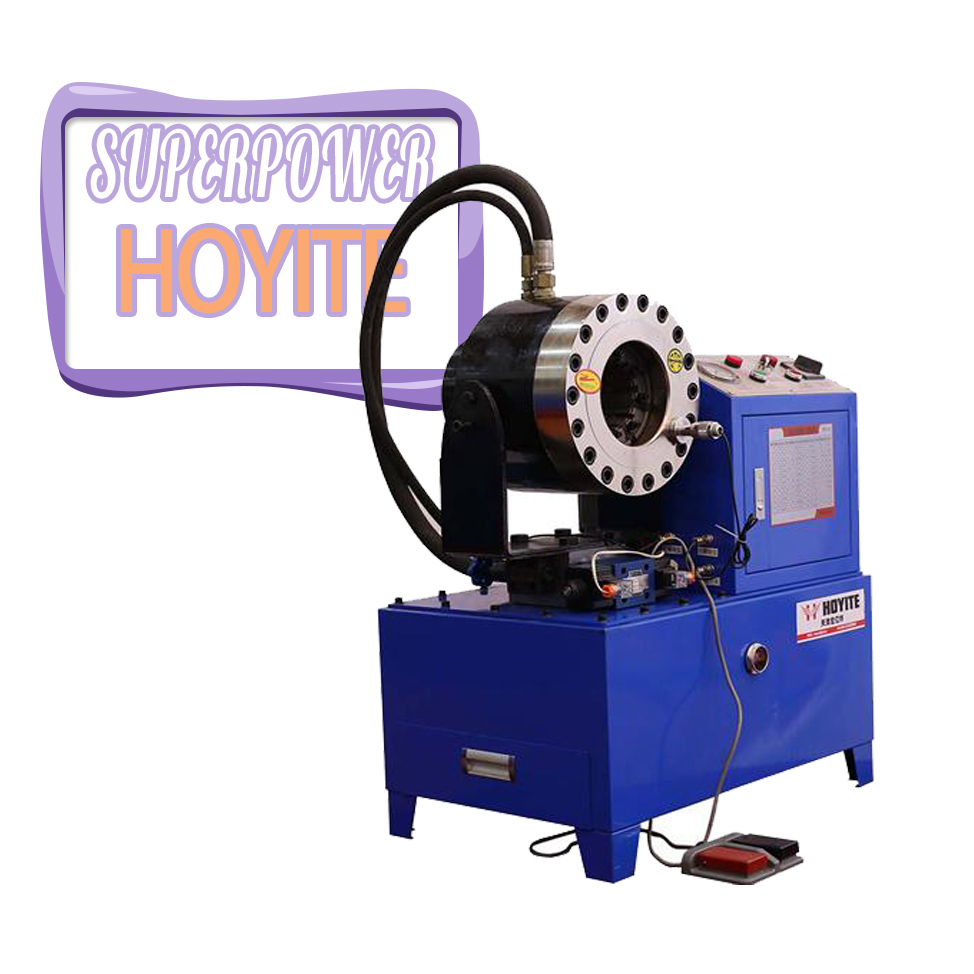

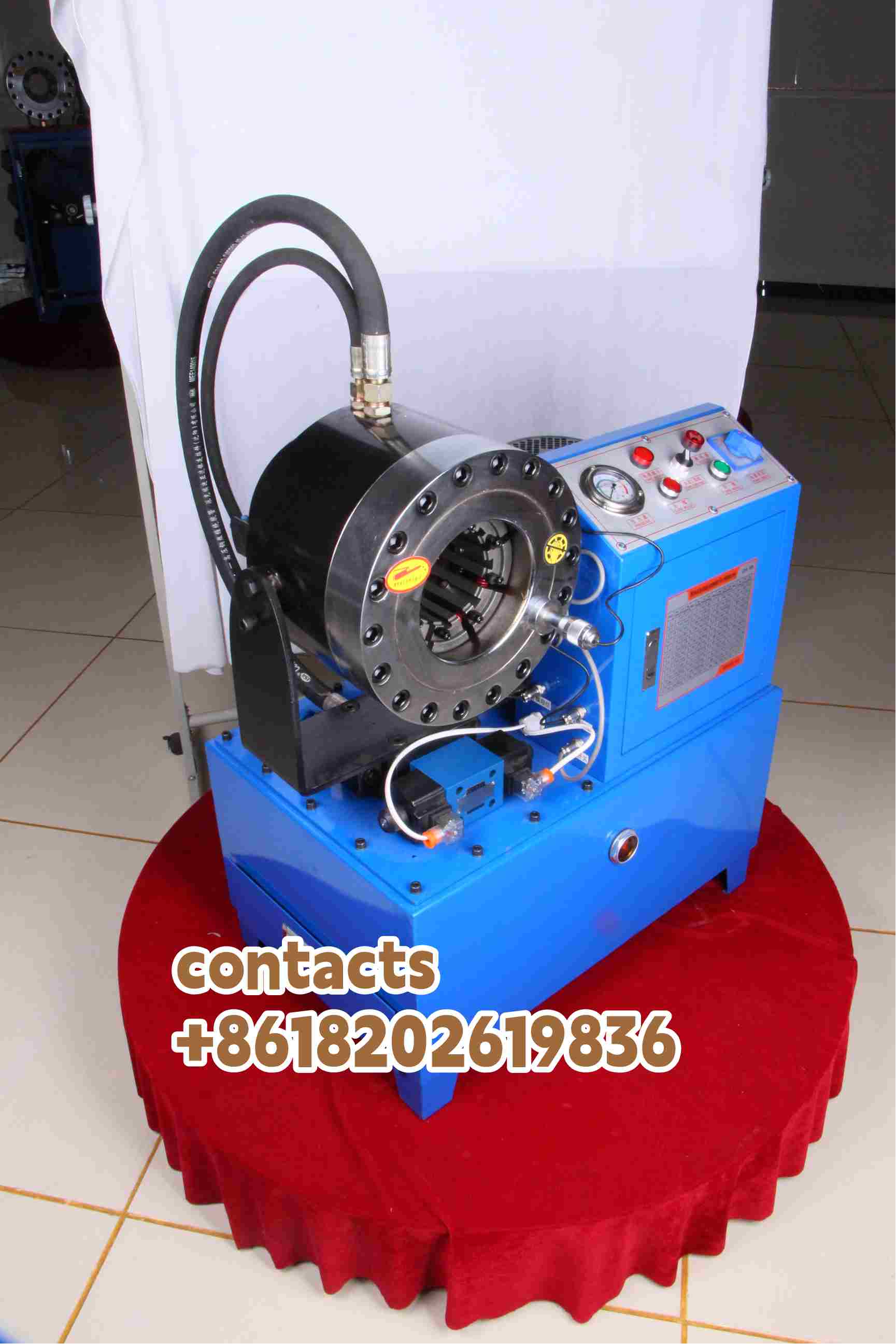

Heavy-Duty Benchtop Hydraulic Hose Crimping Machine

Product ID : HYT-51K

Product Tags : Crimping Machine

Product Attributes :

PowerGrip Max is the go-to hydraulic hose crimping machine for heavy-duty applications. Engineered for strength and durability, this benchtop machine effortlessly handles high-pressure hoses with ease. With its robust construction and powerful crimping capabilities, achieve secure and reliable connections that meet the demands of the toughest industrial environments.

Product Description

Main Specification
Crimper range	25, 32mm
Voltage&motor	380V(4KW)/220V(3KW)
Opening without dies	114mm
Hydraulic oil box	40L(USE 32L)
Dies of quantity	3 sets
Systematic pressure	30MPa
Largest pressure	500T
Quick change dies	Options
Optional accessories	Movable caster/Metal handle
Volume(LxWxH)	67x49x78cm
Net weight	240KG(528lb)
Efficiency(reference)	200pcs/Hour
