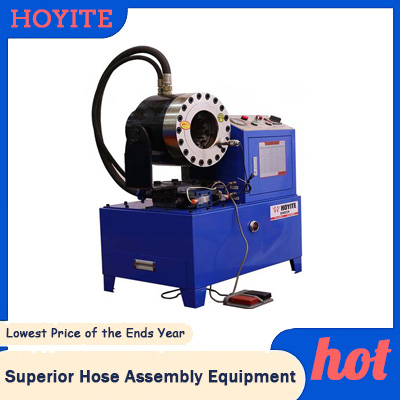

HYT-51K Power Steering Hose Crimper
HYT-51K Power Steering Hose Crimper

HYT-51K Power Steering Hose Crimper

Product ID : HYT-51K
Product Tags : Crimping Machine
Product Attributes :

Develivery time: 7 days

Model: HYT-51K Button type Electric, Steel pipe(falsework) Crimping Range

Voltage: 380V 50HZ 3Phase or based on customer’s need .

Warranty : One year warranty on major components

Product Description
  1. High quality forged steel head, robust and wear-resistant, long service life.
  2. The machine head can rotated by 90°, and the hose can be crimped vertically, which is suitable for making scaffolding, etc.
  3. Button operation panel, which can withhold the hose much more precise.
  4. Regular size head, suitable for crimping hoses from 1/4" to 2" inches, such as oil hoses, water hoses, etc.
  5. Equipped with a foot pedal with anti-mistouch function. Die opening and closing can controlled by pedaling.

HYT-51K Button type Electric, Steel pipe(falsework)

Main Specification
Crimper range 25, 32mm
Voltage&motor 380V(4KW)/220V(3KW)
Opening without dies 114mm
Hydraulic oil box 40L(USE 32L)
Dies of quantity 3 sets
Systematic pressure 30MPa
Largest pressure 500T
Quick change dies Options
Optional accessories Movable caster/Metal handle
Volume(LxWxH) 67x49x78cm
Net weight 240KG(528lb)
Efficiency(reference) 200pcs/Hour

HYT-51K Power Steering Hose Crimper Packaging And Shipping:

Plastic film wrapping;

Wooden packing;

The hydraulic oil tank is shipped empty, please fill it with No. 46 hydraulic oil to use the machine;

There are exposed wires left in the machine. Please replace them with new wires you prepared and use them with electricity.
